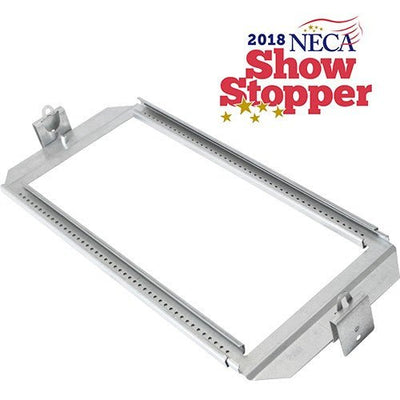

Orbit SSB-TBAR Support Bracket With T-Bar Drop Ceiling Mounting Clips (20 Pack)
Pairs well with
| Description: | |

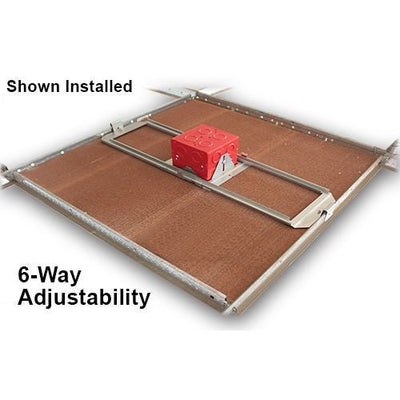

| Simple Support Bracket with T-bar Drop Ceiling Mounting Clips adjusts from 15" to 25" for mounting boxes horizontally between T-bar drop ceiling grids. | |
| Features: | |

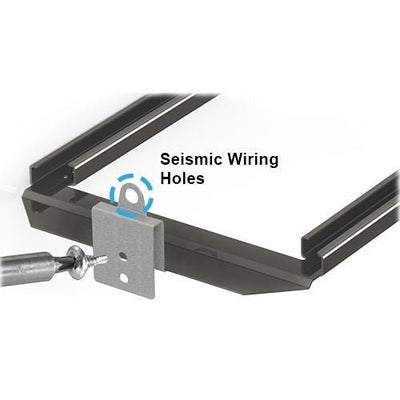

| Telescoping bracket adjusts from 15" to 25" - Can be preassembled to save time and reduce injury on the job site - Must be accompanied with either UMAB or UMAB-4R Series to mount overhead devices Install standard junction boxes quickly with snap-on Adapters: UMA (4" and 4-11/16" Sq. only) and UMA-LVBS (up to 5" Sq.) - Includes two riveted clips for T-bar drop ceiling installation. Tek screw provisions on each clip help comply with NEC 314.23 (D) (1) T-bar grid clips also include branch line restraint holes to meet earthquake codes SSB-TBAR rigidity prevents downward pressure on ceiling tiles, even at full extension Order preassembled, Ready-To-Install with FA-TBAR-UMAB and SSBT-4R Patented |
|
| Specifications: | |
| Material | Sheet Steel |
| Color | Galvanized |
| Mfg. Process | Stamped |
| Packaging Info: | |
| Std Pkg | 20 |
| Certifications: | |

|
|
| UL File Number: | |
| E310661 | |
Download PDF File
