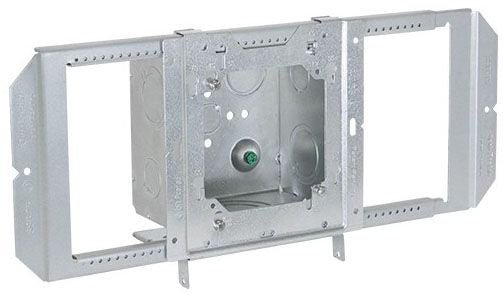

Orbit SSB-T5B-200 SSB-T5 with UMA-LVBS + T5R + T5B-200 (10-pack)

Orbit's Preassembled SSB-T5 with UMA-LVBS and T5B-200 is a ready-to-install solution for mounting large datacom boxes between wall studs or hard-lid ceiling joists. The SSB-T5B-200 bracket component adjusts from 15� to 25� with UMA-LVBS attached to bracket. UMA-LVBS features unique key-hole pattern that allows for pairing of 4� rings with the 5� square box. SSB-T5B-200 includes preinstalled screws, ready to take a 4� ring or cover. UL Listed.

Features:

• SSB-T5 bracket adjusts from 15" to 25"

• Rigidity eliminates need for far-side back support

• T5B-200 offers 75.6 Cu. In. of internal volume “ meets min. cable bend radius

• Supports all current copper, CAT, and fiber optic cables, with space for predicted cable size increases

• UMA-LVBS permits 4" mud ring attachment to 5" square box

• Slide 5� box to critical position - lock in place with one Tek screw

• Includes preinstalled #8-32 screws for quick attachment of 4� rings or covers

• Horizontal pin holes provide quick starting point for screws

• Compatible with Orbit™s UL Adjustable Rings

• Optional BMCS Series provides built-in cable/conduit support

• Add LVSB Series Rings for low voltage applications that require no back-box Ships preassembled, reducing installation time


Specifications:

• Material Sheet Steel

• Color Galvanized

• KO Sides (2) 1" to 2" C.K.O.'s, (2) 1" & 1-1/4" M.K.O.'s,
  (2) 1/2" & 3/4" M.K.O.'s

• KO Bottom (1) 1/2" & 3/4" M.K.O.'s, (1) 3/4" & 1" M.K.O.'s
  (1) 1/2" K.O.'s, (2) Ground Screws


Box Dimensions:

• Width 5"

• Height 5"

• Depth 3 - 1/4"

• Cu. In. 71.8
