Orbit SSB-T5 Simple Support Bracket for Boxes (25 Pack)


Price:
Sale price$170.10

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Category PREFAB
Page P1-P8
Barcode 8-35243-02799-2
Description:

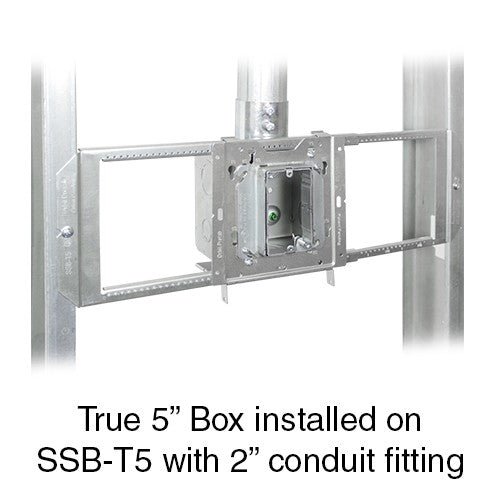

Orbit Industries„¢ Simple Support Bracket for Up To 5" Boxes (SSB-T5) expands from 15" to 25" to suit all common wall stud and hard lid ceiling cavities. SSB-T5 is the first telescoping bracket to accept 4", 4-11/16" and 5" square boxes. Quickly and easily mount junction boxes anywhere between studs, via snap-on Orbit Adapters (UMA for 4" and 4-11/16" UMA-LVBS for up to 5"). Rigid, double-rail design requires no extra back support €œ even at full extension! Up to three outlet boxes between 24" stud bays. Patented. UL Listed.

To order SSB-T5 preassembled in a variety of configurations, please see Orbit„¢s Ready-To-Install product line

Features:

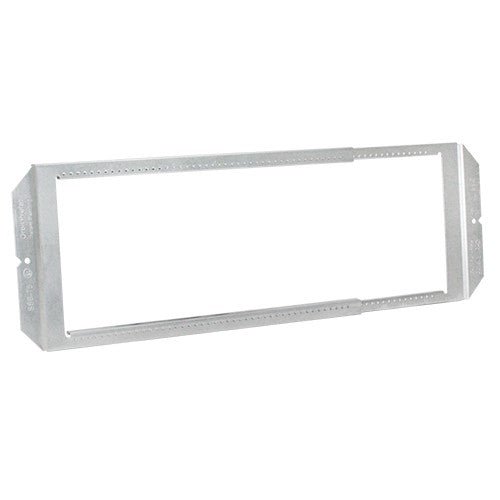

 Telescoping bracket adjusts from 15" to 25"

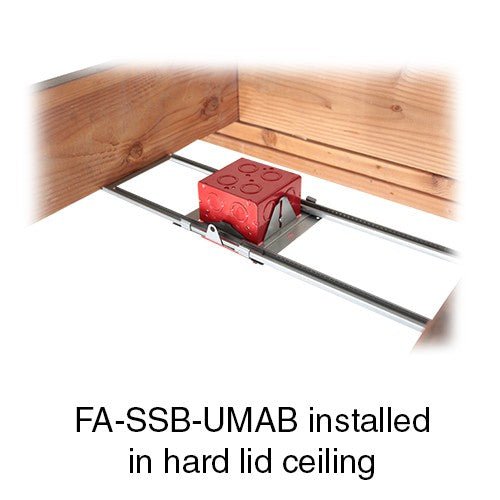

 Mount boxes between studs or overhead between hard lid ceiling joists (for T-grid, see SSB-TBAR)

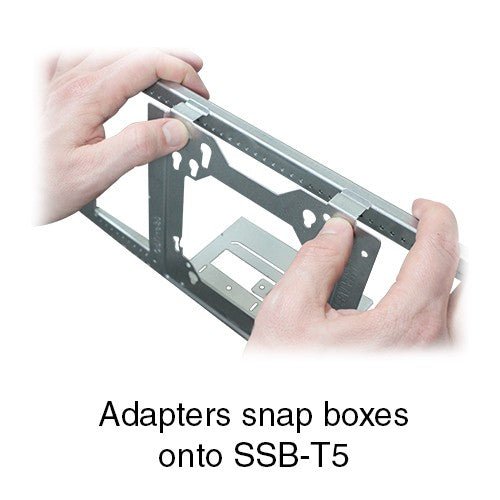

 Install boxes quickly with snap-on Adapters: UMA (4" and 4-11/16" Sq. only) and UMA-LVBS (up to 5" Sq.)
 UMA-LVBS permits 4" mud ring attachment to 4", 4-11/16" and 5" square boxes
 Slide junction box to critical position - lock in place with one Tek screw

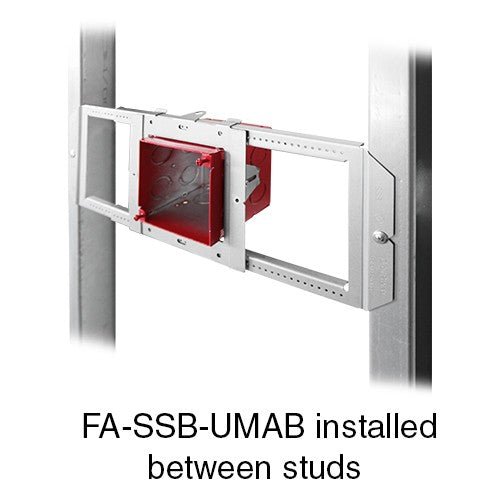

 Compatible with Orbit snap-on Adjustable Boxes: UMAB Series (3-1/2" deep 4S box) and UMAB-4R Series (4O octagon box)
 Compatible with Ready-to-Install LVBS Assemblies (include adapter, box and/or ring)
 Add and remove boxes without detaching SSB-T5 from studs or disassembling bracket

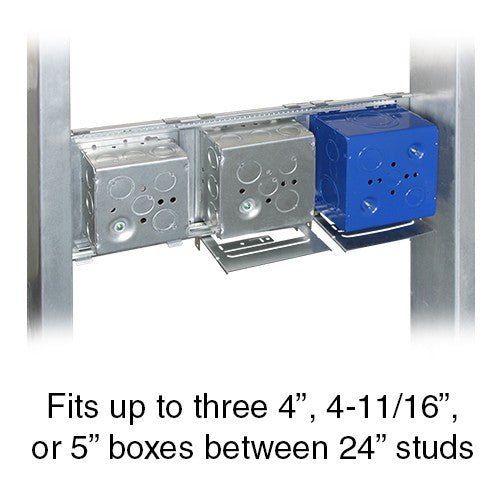

 Mounts up to three junction boxes between 24" wall studs
 Rigidity eliminates need for far-side back support
 Horizontal pin-holes provide quick starting point for screws

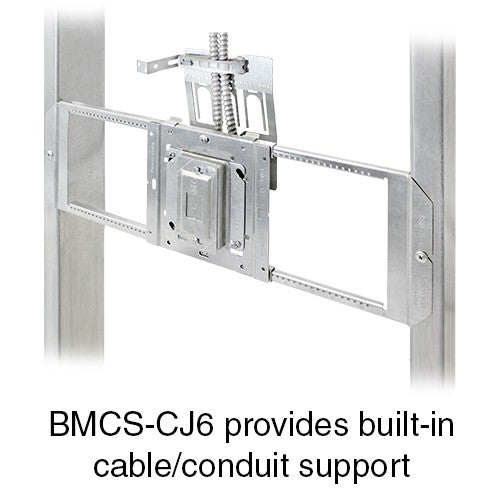

 Optional BMCS Series provides built-in cable/conduit support
 Compatible with Orbit„¢s UL Adjustable Rings

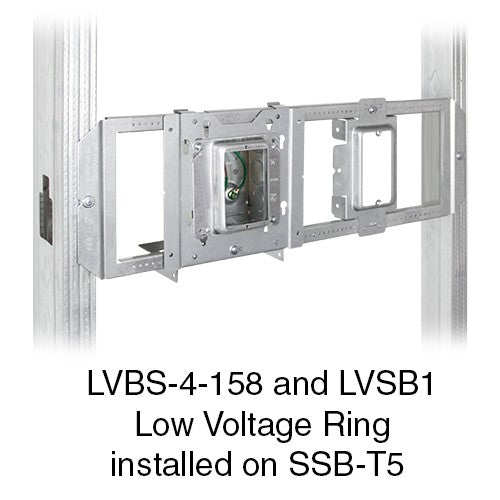

 Use LVSB Series Rings for low voltage applications that require no back-box
 Ideal for Prefabrication: collapse and expand SSB-T5 without removing junction boxes or adapters
 Order SSB-T5 as a Ready-To-Install product, available in a variety of box sizes, types and mounting styles
 Recommended for use with boxes 2-1/8" deep or (deeper)
 Patented
 Must use 5SLB-2MKO or T5B's with SSB Brackets for 1-1/4" or larger conduit

Made in USA / Buy American Act (BAA) Compliant option available upon request.
Please see BAA Compliant Products Submittal Sheet.

Specifications:
Material Sheet Steel
Color Galvanized

Packaging Info:
Std Pkg 25

Certifications:
UL  steel products rohs certification

UL File Number:
E310661
