Description
| Category | SWITCH BOX | |
| Page | P1-P8 | |
| Description: | ||

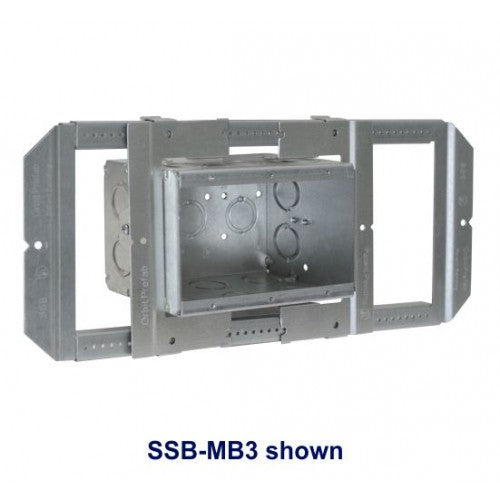

| Orbit’s SSB-MB Series is the fastest and most versatile method to mount 3-1/2” deep Masonry Boxes between stud cavities. The SSB-MB is a preassembled Simple Support Bracket with three to six gang deep Masonry Box installed. The box depth is set at 5/8”, but easily adjustable to 1-1/2” via the outside adjustment screws. With 6-way adjustability, the SSB-MB series will ensure a flush finish every time. | ||
| Features: | ||
|
- Simple Support Bracket adjusts from 15" to 25" - Maintains rigidity when fully extended, eliminating need for back support - Ships preassembled with box depth set at 5/8”, and adjustable up to 1-1/2” - Guided-slots on each side allow the box depth to be easily adjusted by simply loosening the screws - Built-In Adapter allows Masonry Box be moved along Simple Support Bracket until setting in final position with a tek screw - All Knockouts are Concentric 1/2" & 3/4" |
||
| Specifications: | ||
| Material | Sheet Steel | |
| Color | Galvanized | |
| Packaging Info: | ||
| Std Pkg | 10 | |
| Certifications: | ||

|
||
| UL File Number: | ||
| E310661 | ||
| Literature | ||
Catalog
|
UPC |
No. of
|
KO Ends |
KO Botton |
KO Sides |
Cu. Inch |
| SSB-MB6 | 8-35243-02549-3 | 6 | (12) - CKO | (6) - CKO | (4) - CKO | 139 |
