Orbit SSB-MB5 SSB With MB-5 With UMA - Galvanized


Choose Pack: 1 Pack
Price:
Sale price$31.71

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Category SWITCH BOX
Page P1-P8
Description:

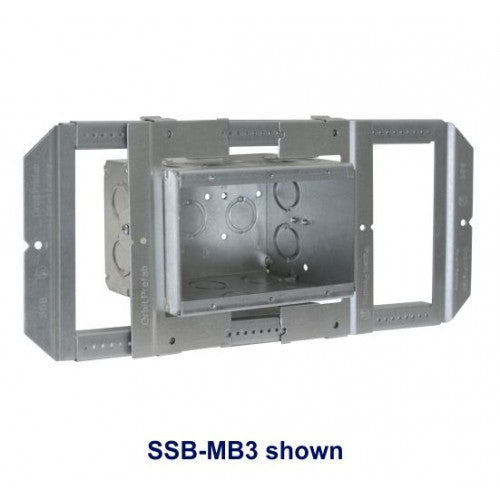

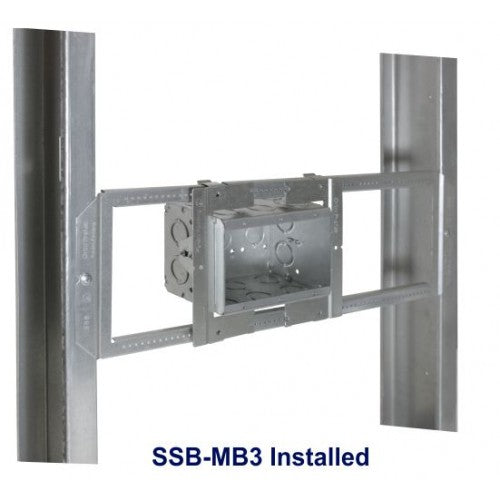

Orbit’s SSB-MB Series is the fastest and most versatile method to mount 3-1/2” deep Masonry Boxes between stud cavities. The SSB-MB is a preassembled Simple Support Bracket with three to six gang deep Masonry Box installed. The box depth is set at 5/8”, but easily adjustable to 1-1/2” via the outside adjustment screws. With 6-way adjustability, the SSB-MB series will ensure a flush finish every time.

Features:
- Simple Support Bracket adjusts from 15" to 25"
- Maintains rigidity when fully extended, eliminating need for back support
- Ships preassembled with box depth set at 5/8”, and adjustable up to 1-1/2”

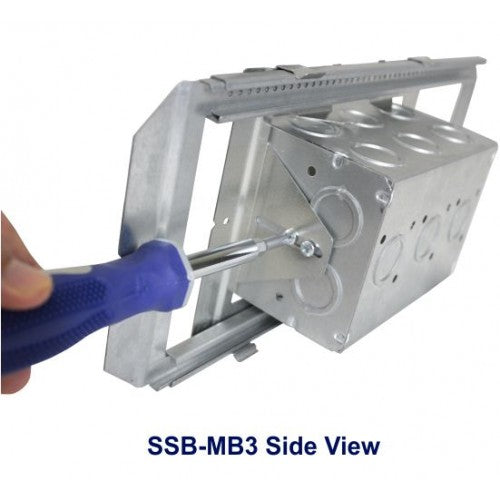

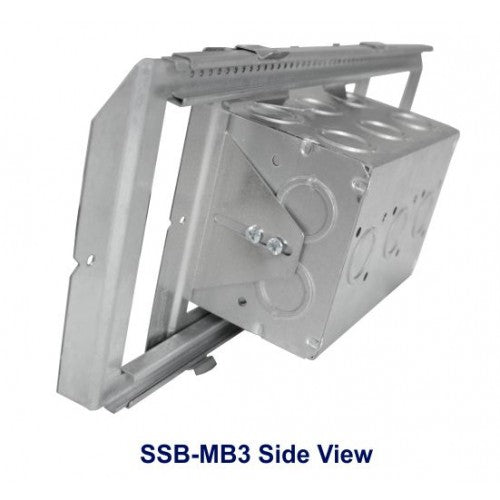

- Guided-slots on each side allow the box depth to be easily adjusted by simply loosening the screws
- Built-In Adapter allows Masonry Box be moved along Simple Support Bracket until setting in final position with a tek screw
- All Knockouts are Concentric 1/2" & 3/4"

Specifications:
Material Sheet Steel
Color Galvanized

Packaging Info:
Std Pkg 10

Certifications:
steel products ul certification  steel products rohs certification

UL File Number:
E310661

Literature

Catalog
Number

UPC

No. of
Gangs

KO Ends

KO Botton

KO Sides

Cu. Inch

SSB-MB5 8-35243-02548-6 5 (10) - CKO (5) - CKO (4) - CKO 116.1

Download PDF File

Specification
