Description
Category | PREFAB | |
Page | P1-P8 | |
Barcode | 8-35243-02897-5 | |
Description: | ||

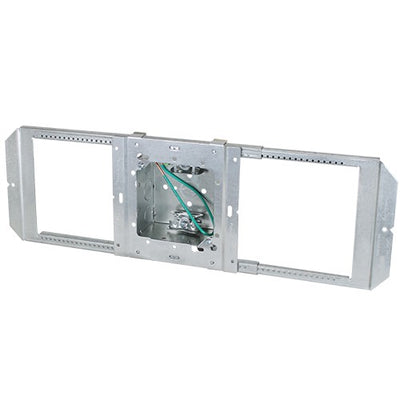

Orbit's Preassembled SSB-T5 with UMA and Angled MC Box is a ready-to-install solution for mounting switches and outlets between wall studs or hard-lid ceiling joists. Junction box features integral MC cable clamps with screws angled up/down - allowing seamless access to screws with a mud ring installed. The SSB-A4 bracket component adjusts from 15€� to 25€� with UMA attached to bracket. 4€� square 2-1/8€� deep box features loom pryouts for MC cable, 3/4€� to 1/2€� eccentric knockouts, 1/2€� knockouts, and preinstalled 10€� pigtail. UL Listed. | ||
Features: | ||

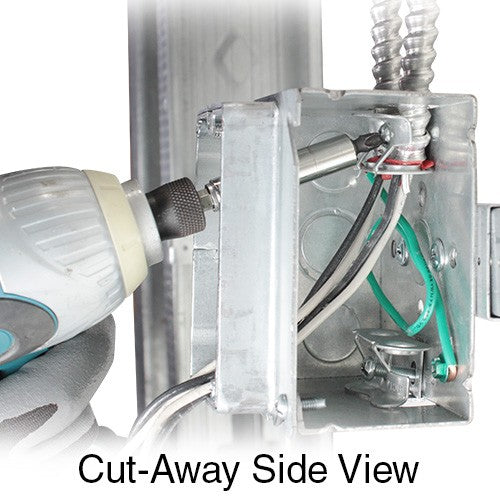

- SSB-T5 bracket adjusts from 15" to 25" - Integral MC Clamp screws set at 15° angle €“ easily secure cable with mud ring installed - 4€� square 2-1/8€� deep box with loom pryouts, 1/2" KOs, and 3/4€� to 1/2€� MKOs - Box includes 10-32 Ground Screw with 10" Solid Cu. #12AWG Pigtail - Snap-on UMA adapter can be removed and installed quickly without tools - Slide box to critical position - lock in place with one Tek screw - Horizontal pin holes provide quick starting point for screws - Rigidity eliminates need for far-side back support - Compatible with Orbit€™s UL Adjustable Rings - Optional BMCS Series provides built-in cable support - Add LVSB Series Rings for low voltage applications that require no back-box - Ships preassembled, reducing installation time |
||
Specifications: | ||
Material | Sheet Steel | |
Color | Galvanized | |
Side KOs | (4) - 1/2", (2) €“ MKO, (4) - Loom | |
Bottom KOs | (1) - 1/2" | |
Packaging Info: | ||
Std Pkg | 12 | |
Certifications: | ||
![]() ![]() |
||
UL File Number: | ||
E310661 |
