Description
Category | PREFAB | |
Page | P1-P8 | |
Barcode | 8-35243-00672-0 | |
Description: | ||

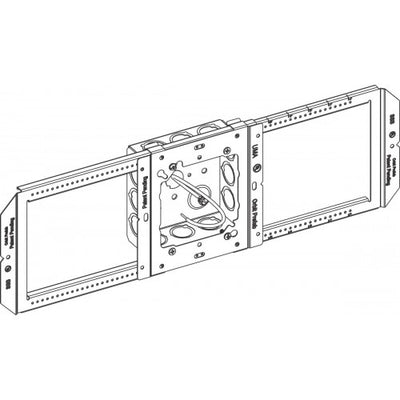

Orbit's Preassembled SSB-T5 with UMA and 4-11/16" (5S) Box with Multi-KOs is a ready-to-install solution for mounting switches and outlets between wall studs or hard-lid ceiling joists. The SSB-5S-MKO bracket component adjusts from 15” to 25” with UMA attached to bracket. Includes 4-11/16” square 2-1/8” deep box with 3/4” to 1/2” eccentric knockouts, 1/2” knockouts, and preinstalled 10” pigtail. Patented. UL Listed. | ||
Features: | ||
- SSB-T5 bracket adjusts from 15" to 25" - Rigidity eliminates need for far-side back support - Includes 4-11/16” square 2-1/8” deep box with 1/2" KOs & 3/4” to 1/2” MKOs - Includes 10-32 Ground Screw with 10" Solid Cu. #12AWG Pigtail - Snap-on UMA adapter can be removed and installed quickly without tools - Slide 4-11/16” box to critical position - lock in place with one Tek screw - Horizontal pin holes provide quick starting point for screws - Two additional flat screw for mounting the box on UMA bracket - Two pre-raised #8-32 screws are ready for taking any ring or cover - Compatible with Orbit’s UL Adjustable Rings - Optional BMCS Series provides built-in cable/conduit support - Add LVSB Series Rings for low voltage applications that require no back-box - Ships preassembled, reducing installation time |
||
Specifications: | ||
Material | Sheet Steel | |
Color | Galvanized | |
Sides KOs | (2) - 1/2", (10) - MKO | |
Bottom KOs | (2) - 1/2", (2) - MKO | |
Packaging Info: | ||
Std Pkg | 12 | |
Certifications: | ||
UL File Number: | ||
E310661 |
