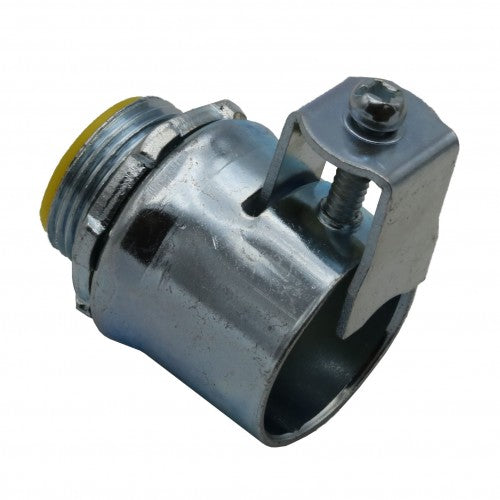

Orbit SFID-50 Flex Saddle Clamps Double-Bite Type Connector Insulated 1/2" - Steel


Choose Pack: 1 Pack
Price:
Sale price$2.33

Shipping calculated at checkout

Stock:
In stock

Description

Category PIPE FITTING
Page D13

Description:

Orbit Industries’ FLEX Connecters offer a fast and reliable installation of EMT conduits and flex conduits, metal clad or armored cables to electrical junction boxes or enclosures. The dual gripping saddle clamp have the shape fitting metal jacket of cables, which prevents metal jacket from being distorted and protects wires inside.  Steel construction ensures the strength of the connecters and provides great mechanical protection to conduits and cables, and plated zinc provides great corrosion resistance. The insulated throat protects wire coating from being scratched when wires are being pulled.

SFID-50:
Steel AC: 12/4 (0.550") - 6/3 (0.920")
AL AC: 12/4 (0.550") - 6/3 (0.920")
Steel MCI: 10/4 (0.640") - 8/3 (0.920")
AL MCI: 10/4 (0.640") - 8/3 (0.920")
MCI-A: 12/4 (0.520") - 8/4 (0.770")
Steel HCF AC: 12/4 (0.550") - 6/3 (0.920")
AL HCF AC: 12/4 (0.550") - 6/3 (0.920")
HCF MCI-A: 12/4 (0.520") - 8/4 (0.770")
Steel/AL FMC/RWFMC/XRWFMC: 1/2"

Features:
- Steel
- Zinc plated for corrosion protection
- With Insulated throat for wire protection
- Dual gripping saddle clamp for FLEX conduits and MC/AC cables
- Combo-head screw moves saddle clamp up and down for easy installation
- For AC, MCI, MCI-A, HCF, FMC
- Dry location

Certifications:
ul certification

UL File Number:
E362145

CAT NO UPC FLEX SIZE KO SIZE STD PKG MASTER CTN
SFID-50 8-35243-02867-8 1/2" 1/2" 25 100
