Description

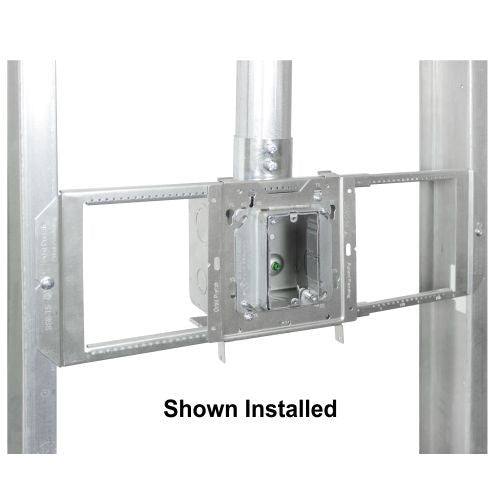

| Orbit's Preassembled SSB-T5 with UMA-LVBS and T5B-200 is a ready-to-install solution for mounting large datacom boxes between wall studs or hard-lid ceiling joists. The SSB-T5B-200 bracket component adjusts from 15{" to 25' with UMA-LVBS attached to bracket. UMA-LVBS features unique key-hole pattern that allows for pairing of 4' rings with the 5' square box. SSB-T5B-200 includes preinstalled screws, ready to take a 4" ring or cover. UL Listed. | |
| Features: | |
| SSB-T5 bracket adjusts from 15" to 25" - Rigidity eliminates need for far-side back support T5B-200 offers 75.6 Cu. In. of internal volume €œ meets min. cable bend radius Supports all current copper, CAT, and fiber optic cables, with space for predicted cable size increases UMA-LVBS permits 4" mud ring attachment to 5" square box - Slide 5' box to critical position - lock in place with one Tek screw - Includes preinstalled #8-32 screws for quick attachment of 4' rings or covers - Horizontal pin holes provide quick starting point for screws - Compatible with Orbit„¢s UL Adjustable Rings - Optional BMCS Series provides built-in cable/conduit support - Add LVSB Series Rings for low voltage applications that require no back-box - Ships preassembled, reducing installation time |
|
| Specifications: | |
| Material | Sheet Steel |
| Color | Galvanized |
| KO Sides | (2) 1" to 2" C.K.O.'s, (2) 1" & 1-1/4" M.K.O.'s, |
| (2) 1/2" & 3/4" M.K.O.'s | |
| KO Bottom | (1) 1/2" & 3/4" M.K.O.'s, (1) 3/4" & 1" M.K.O.'s |
| (1) 1/2" K.O.'s, (2) Ground Screws | |
| Box Dimensions: | |
| Width | 5" |
| Height | 5" |
| Depth | 3 - 1/4" |
| Cu. In. | 71.8 |
| Packaging Info: | |
| Std Pkg | 10 |
| Certifications: | |
 |
|
