Description
| Category | PREFAB |
| Page | P17 |
| Description: | |

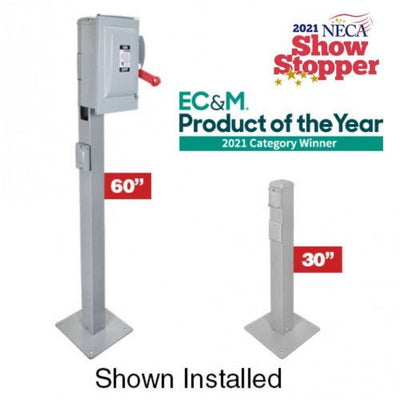

| Orbit’s patent pending Power Pedestal are NEMA 3R Listed raceways for switches and devices that serve power to nearly 99% of all common rooftop equipment. PP Series is a stand-alone support that requires just one roof penetration, without the need for extra bracing. Available in 30” and 60” heights, PP Series’ two-piece design reduces the amount of labor and material required to “stick-build” similar solutions in the field. Steel Stand protects conductors and devices from impact far better than tubular raceway. Grounding provisions are included, and model no. PP-60-S features Terminal Lugs that allow for easy bonding of safety switches per NEC. Power Pedestal allow conduit to be routed below the roof-line, which further reduces the number of roof penetrations needed. Minimal penetrations help to maintain rooftop integrity, and improve the overall roof aesthetic. This solution frees installers from moving heavy loads of material to the roof. Power Pedestal can be installed discretely while other trades are working in the same area. Since most raceway is out of the sunlight, de-rating of conductors per NEC 310.15 is greatly reduced. |
|
| Features: | |
|
- NEMA 3R Listed raceway designed to mount devices that serve power to rooftop equipment - UL Listed for Wet locations - Stand-alone unit requires only one roof penetration and no additional bracing - Route conduit paths below the roof line - Base and Stand sold separately - Ideal for off-site prefabrication - Extension Coupling (PPEC-12) adds 12” of height to Stands (sold separately) - Patent Pending |
|
| General Specifications: | |
| Stand Material | 13 GA Steel |
| Base Material | 3 GA Steel |
| Coating | Zinc Plating + Powder Coated |
| Color | Grey |
| Mfg. Process | Welded |
| PP-30-S Specifications: | |

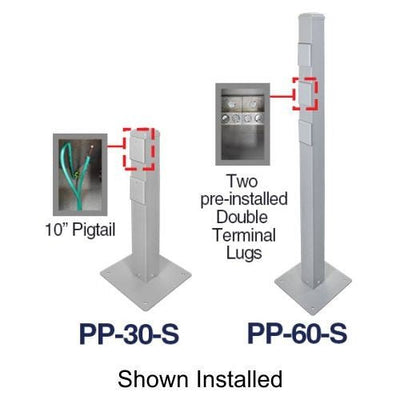

| - Two (2) 1-gang device openings with gasketed Blank Covers (1-BC) - Includes 10-32 Ground Screw with 10" Solid Cu. #12AWG Pigtail (top opening) |
|
| PP-60-S Specifications: | |
| - Three (3) 1-gang device openings with gasketed Blank Covers (1-BC) - Two (2) #1/0-14AWG Double Terminal Lugs (center opening) with four (4) available terminals |
|
| Base Specifications: | |

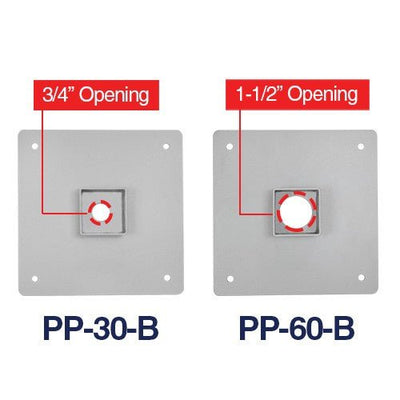

| - PP-30-B opening 3/4” - PP-60-B opening 1-1/2” - Includes Installation Instructions and four (4) 1/4"-20 Bolts for assembling the Stand - Features four (4) hole provisions for 3/8” anchor bolts or stud anchors (not included, by other) |
|
| Applications: | |
| - New construction or retrofit - Designed for every type of non-slanted commercial rooftop (membrane, metal, built-up, etc.) - 60” Post is ideal for fused and non-fused safety switches that serve rooftop equipment (HVAC units, air handlers, VFDs, etc.) - 30” Post is ideal for toggle switches, or providing service outlets within 25-ft of equipment per NEC 210.63 - Serving indoor industrial equipment (conveyor belts, machinery, motors, etc.) - Outlet posts for outdoor planters, gardens, and atriums - Access keypad stands for automatic entry gates |
|
| Certifications: | |
   |
|
| UL File Number: | |
| E515242 | |
Catalog
|
UPC |
Description |
Trade Size |
Dimensions
|
Std.
|
Weight/Std.Pkg. |

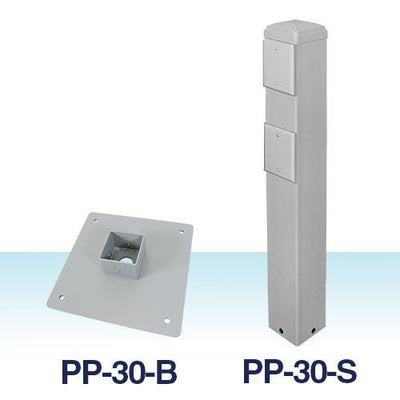

| PP-30-B | 8-35243-02899-9 | Power Pedestal 30” Base | 3/4" | 10" x 10" | 4 | 33 lbs |
| PP-30-S | 8-35243-02900-2 | Power Pedestal 30” Stand | - | 3" x 3" | 4 | 32 lbs |
| PP-60-B | 8-35243-02901-9 | Power Pedestal 60” Base | 1-1/2" | 10" x 10" | 2 | 16 lbs |
| PP-60-S | 8-35243-02902-6 | Power Pedestal 60” Stand | - | 3" x 3" | 2 | 31 lbs |
| PPEC-12 | 8-35243-02924-8 | PP-30 & PP-60 EXT. Coupling 12” | - | 12" x 3" x 3" | 4 | 17.6 lbs |
ROOF SEALANT DISCLAIMER: End users are advised to work with roofing contractor to ensure Power Pedestal installed on rooftops are properly sealed in accordance with all applicable code enforcement agencies; authorities having jurisdiction (AHJ); city, county and state building codes; project specifications, et. al.
