Description
Category | PIPE FITTING |
Page | D1 |
Description: | |

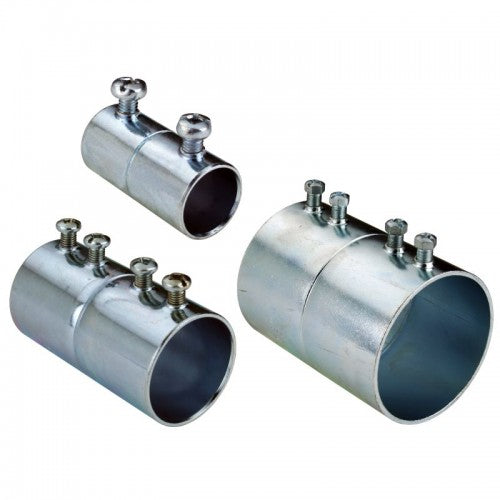

Orbit Industries’ set-screw steel EMT couplings are used in dry locations to connect the ends of two EMT conduits together to extend the raceway. The steel construction ensures mechanical protection and the connection between one conduit to another. | |
Features: | |
- Steel - Zinc Electro-Plated - Concrete-Tight when Taped - Suitable for applications above 600V - Sizes 2-1/2" to 4" are also listed for RIGID and IMC Conduits |
|
Certifications: | |
UL File Number: | |
E310660 | |
CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
OF7711 | 8-35243-05149-2 | 1/2" | 50 | 500 |
OF7712 | 8-35243-05150-8 | 3/4" | 25 | 250 |
OF7713 | 8-35243-05151-5 | 1" | 10 | 100 |
OF7714 | 8-35243-05152-2 | 1-1/4" | 10 | 100 |
OF7715 | 8-35243-05153-9 | 1-1/2" | 10 | 50 |
OF7716 | 8-35243-05154-6 | 2" | 5 | 50 |
OF7717 | 8-35243-05155-3 | 2-1/2" | - | 12 |
OF7718 | 8-35243-05156-0 | 3" | - | 12 |
OF7719 | 8-35243-05157-7 | 3-1/2" | - | 6 |
OF7720 | 8-35243-05158-4 | 4" | - | 6 |
