Description
Category | PIPE FITTING |
Page | D2 |
Description: | |

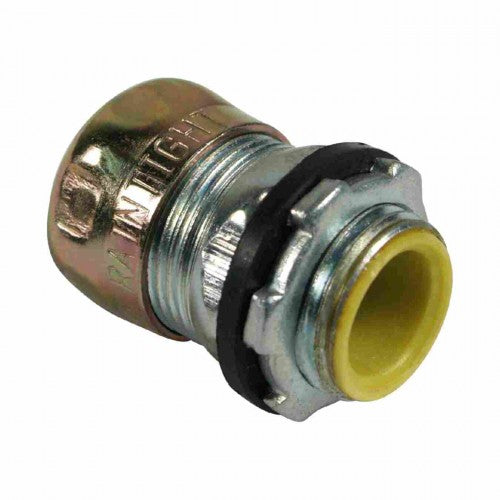

Orbit Industries rain tight compression connectors are used in wet locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. Orbit Industries’ rain-tight EMT compression connectors have been designed to comply with the new rain-tight test requirements along with the 2008 NEC 358.42 and 314.15 requirements. The steel construction ensures mechanical protection and the conduit to the designated electrical junction box or enclosure. With Orbit Industries’ labor saving design, electrician can quickly tighten these connectors on EMT conduits. | |
Features: | |
- Steel - Zinc Electro-Plated - Rain-Tight - Suitable for applications above 600V - With Insulated Throat (Yellow, Throat color may vary) - Compression Cap color may vary - Sizes 2-1/2" to 4" are also listed for RIGID and IMC Conduits |
|
Certifications: | |
UL File Number: | |
E310660 | |
CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
OF7601-SW | 8-35243-05071-6 | 1/2" | 25 | 250 |
OF7602-SW | 8-35243-05075-4 | 3/4" | 25 | 250 |
OF7603-SW | 8-35243-05079-2 | 1" | 10 | 100 |
OF7604-SW | 8-35243-05083-9 | 1-1/4" | 10 | 100 |
OF7605-SW | 8-35243-05087-7 | 1-1/2" | 10 | 50 |
OF7606-SW | 8-35243-05091-4 | 2" | 5 | 50 |
OF7607-SW | 8-35243-05095-2 | 2-1/2" | - | 12 |
OF7608-SW | 8-35243-05099-0 | 3" | - | 12 |
OF7609-SW | 8-35243-05103-4 | 3-1/2" | - | 6 |
OF7610-SW | 8-35243-05107-2 | 4" | - | 6 |
