Description
Category | PIPE FITTING |
Page | D4 |
Description: | |

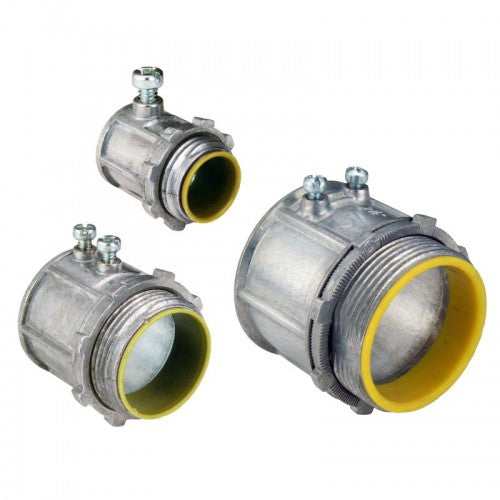

Orbit Industries’ insulated zinc die-cast set-screw electrical connectors are used in dry locations to bond EMT thinwall conduits to electrical junction boxes or enclosures. | |
Features: | |
- Zinc Die Cast - Concrete-Tight when taped - Combo Head Set-Screw - Suitable for applications above 600V - Sizes 2-1/2" to 4" are also listed for RIGID and IMC Conduits - With Insulated Throat (yellow, color may vary) |
|
Certifications: | |
UL File Number: | |
E310660 | |
CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
OF701-S | 8-35243-05018-1 | 1/2" | 50 | 500 |
OF702-S | 8-35243-05020-4 | 3/4" | 25 | 250 |
OF703-S | 8-35243-05022-8 | 1" | 10 | 100 |
OF704-S | 8-35243-05024-2 | 1-1/4" | 10 | 100 |
OF705-S | 8-35243-05026-6 | 1-1/2" | 10 | 50 |
OF706-S | 8-35243-05028-0 | 2" | 5 | 50 |
OF707-S | 8-35243-05030-3 | 2-1/2" | - | 12 |
OF708-S | 8-35243-05032-7 | 3" | - | 12 |
OF709-S | 8-35243-05034-1 | 3-1/2" | - | 6 |
OF710-S | 8-35243-05036-5 | 4" | - | 6 |
