Description
| Category | PIPE FITTING |
| Page | D23 |
| Description: | |

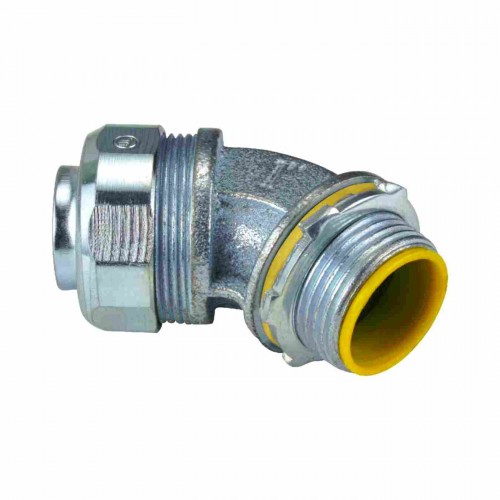

| Orbit Industries' insulated 45° angle connectors are used on flexible metallic liquid tight conduits and Type B flexible non metallic liquid tight conduits to positively bond conduits to boxes or enclosures in both wet and damp locations. The 45° angle connectors are designed to slip on to the conduit quickly and to grip the conduit jacket, speeding up installation while ensuring a strong, liquid tight seal that decreases the risk of pullouts. All components of these connectors can be easily disassembled and reused. In addition, when connectors are terminated in threadless openings, the included sealing washers provide liquid tight seals. The heavy duty locknuts included with every Orbit liquid tight connector ensures the continuity of the grounding. In damp locations, the connectors are also of excellent corrosion protection with zinc electroplated. | |
| Features: | |
| - Malleable Iron - Electroplated Zinc - With Insulated Throat - Insulated color may vary |
|
| Certifications: | |
 |
|
| UL File Number: | |
| E310658 | |
| CAT NO | UPC | TRADE SIZE | STD PKG | MASTER CTN |
| MLTI45-38 | 8-35243-03206-4 | 3/8" | 25 | 150 |
| MLTI45-50 | 8-35243-03207-1 | 1/2" | 25 | 150 |
| MLTI45-75 | 8-35243-03208-8 | 3/4" | 10 | 100 |
| MLTI45-100 | 8-35243-03209-5 | 1" | 5 | 50 |
| MLTI45-125 | 8-35243-03210-1 | 1-1/4" | 5 | 40 |
| MLTI45-150 | 8-35243-03211-8 | 1-1/2" | 4 | 20 |
| MLTI45-200 | 8-35243-03212-5 | 2" | 1 | 15 |
| MLTI45-250 | 8-35243-05330-4 | 2-1/2" | - | 1 |
| MLTI45-300 | 8-35243-05331-1 | 3" | - | 1 |
| MLTI45-350 | 8-35243-05332-8 | 3-1/2" | - | 1 |
| MLTI45-400 | 8-35243-05333-5 | 4" | - | 1 |
