Description
Category | PIPE FITTING |
Page | D55 |
Description: | |

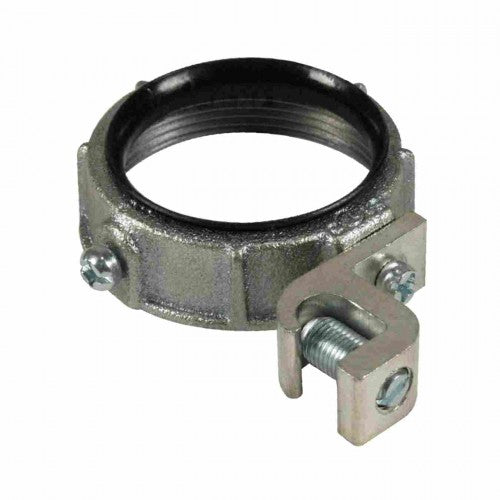

Malleable Ground Bushings Insulated with Universal Lay-In Lug | |
Features: | |
- 150°C rated Throat Insulator - Malleable Iron - Zinc Electroplated - Aluminum Lay-In Lug for use with copper or aluminum grounding conductor - Full Machine-Cut Internal Threads - Meets Federal Spec. A-A-50553 |
|
Certifications: | |
UL File Number: | |
E310659 | |
CAT NO | UPC | TRADE SIZE | Lug Range | STD PKG | MASTER CTN |
MGBLL-50 | 835243053922 | 1/2" | #14 - #4 | 50 | 200 |
MGBLL-75 | 835243053939 | 3/4" | #14 - #4 | 25 | 100 |
MGBLL-100 | 835243053946 | 1" | #14 - #4 | 25 | 100 |
MGBLL-125 | 835243053953 | 1-1/4" | #14 - #4 | 10 | 50 |
MGBLL-125-10 | 835243021822 | 1-1/4" | #14 - #1/0 | 20 | 200 |
MGBLL-150 | 835243053960 | 1-1/2" | #14 - #4 | 10 | 50 |
MGBLL-150-10 | 835243021839 | 1-1/2" | #14 - #1/0 | 10 | 100 |
MGBLL-200 | 835243053977 | 2" | #14 - #4 | 10 | 50 |
MGBLL-200-10 | 835243021846 | 2" | #14 - #1/0 | 10 | 100 |
MGBLL-250 | 835243053984 | 2-1/2" | #6 - #250MCM | 5 | 25 |
MGBLL-250-10 | 835243021853 | 2-1/2" | #14 - #1/0 | - | 50 |
MGBLL-300 | 835243053991 | 3" | #6 - #250MCM | 5 | 25 |
MGBLL-300-10 | 835243021860 | 3" | #14 - #1/0 | - | 25 |
MGBLL-350 | 835243054004 | 3-1/2" | #6 - #250MCM | - | 5 |
MGBLL-350-10 | 835243021877 | 3-1/2" | #14 - #1/0 | - | 10 |
MGBLL-400 | 835243054011 | 4" | #6 - #250MCM | - | 5 |
MGBLL-400-10 | 835243021884 | 4" | #14 - #1/0 | - | 10 |
MGBLL-500 | 835243054028 | 5" | #6 - #250MCM | - | 5 |
MGBLL-500-30* | 835243021891 | 5" | #6 - #3/0 | - | 5 |
MGBLL-600 | 835243054035 | 6" | #6 - #250MCM | - | 5 |
MGBLL-600-30* | 835243021907 | 6" | #6 - #3/0 | - | 5 |
