Description
Category | PIPE FITTING |
Page | D41 |
Description: | |

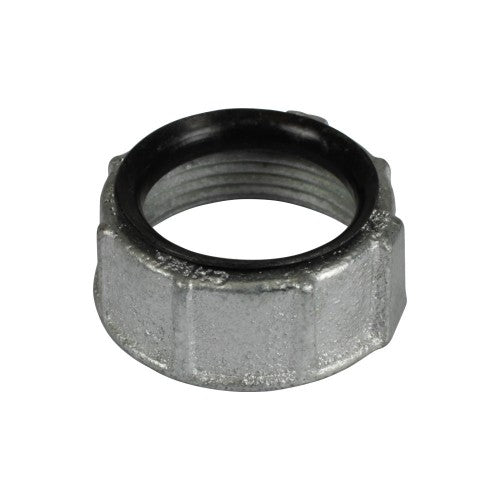

Orbit Industries’ Malleable Iron insulated conduit bushings are used with locknuts to connect threaded Rigid/IMC conduits to box or enclosure. Rated 105°C plastic liner provides a smooth rounded surface at the entrance to prevent damage to wire insulation. | |
Features: | |
- Malleable iron - Zinc Electroplated for added corrosion protection - 105°C rated insulated throat |
|
Certifications: | |
UL File Number: | |
E310661 | |
CAT NO | UPC | Trade Size | STD PKG | Master Ctn. |
MCBI-50 | 835243019645 | 1/2" | 100 | 1000 |
MCBI-75 | 835243019652 | 3/4" | 50 | 500 |
MCBI-100 | 835243019669 | 1" | 50 | 500 |
MCBI-125 | 835243019676 | 1-1/4" | 25 | 250 |
MCBI-150 | 835243019683 | 1-1/2" | 25 | 100 |
MCBI-200 | 835243019690 | 2" | 10 | 100 |
MCBI-250 | 835243019706 | 2-1/2" | - | 50 |
MCBI-300 | 835243019713 | 3" | - | 25 |
MCBI-350 | 835243019720 | 3-1/2" | - | 25 |
MCBI-400 | 835243019737 | 4" | - | 10 |
MCBI-500 | 835243019744 | 5" | - | 10 |
MCBI-600 | 835243019751 | 6" | - | 10 |
