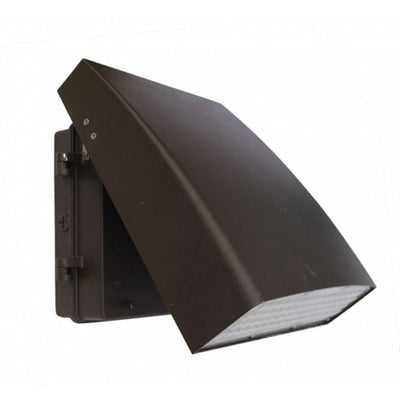

Orbit LWP25-30W-CW Slim Cutoff LED Wallpack 30W 5000K - Bronze

Orbit Industries, Inc.SKU: LWP25-30W-CW

Choose Pack: 1 Pack
Price:
Sale price$96.90

Shipping calculated at checkout

Stock:
In stock

Description

Category LED
Page H7

Description:

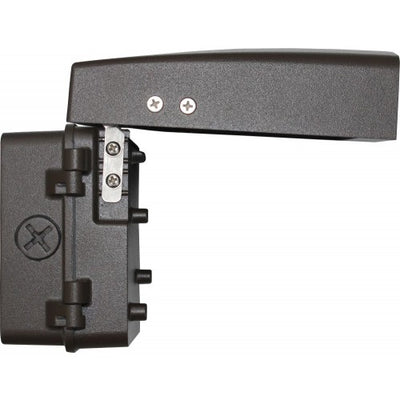

The LWP25 is a slim architectural LED wall pack with a unique pivoting head, which adjusts from 0° to 90° angles. The LWP25's adjustable head allows users to aim light precisely before and after installation.  Ideal for illuminating outdoor walkways, landscapes and building perimeters. The LWP25 LED wallpack is also easy to install, and fastens to most 3O or 4O junction boxes. A 120V or 277V Photocell is optional. DLC Listed. UL Listed for Wet Locations.

Specifications:
LWP25
Voltage: 120~277V
Power Factor: > 0.9
Distribution Type: 12W: TYPE II
30W: TYPE I
Housing: ADC12 Die Cast Aluminum
Finish: UV Resistant Bronze Powder Coat Finish
Lens Material: High Light Transmittance Polycarbonate Lens with Weatherproof Gasket
Ambient Operating Temp: 12W: -20°C / -4°F to 40°C / 104°F
30W: -40°C / -40°F to 40°C / 104°F
Mount: Wall Mount
UL listed for Wet Location E335594
Life Hours: 50,000
Warranty: 5 Year Limited Warranty
Beam Angle: 80x100°
*Dimmable: 0-10V/PWM/VR
Photocell Optional: PC-1F or PC-1F-277

Dimensions
LWP25-12W: (A) 5-9/10" x (B) 5" x (C) 3-3/8"
LWP25-30W: (A) 9" x (B) 7-2/3" x (C) 4-1/2"

Certifications UL Mark DLC  Philips Lumileds   IP65 Logo   LM-79  RoHS Logo  5 Year Warranty


Catalog
Number

DLC
Product ID

System Wattage

Efficacy

Color
Temp

BUG Rating

Lumens

CRI

Wattage Equivalent

LWP25-12W-CW PLT7B8A0JXNF 12W 103 lm/W 5000K B1-U0-G0 1280 80+ 50W MH
LWP25-12W-WW PL9OM9DMXG5L 12W 98 lm/W 3000K B1-U0-G0 1211 80+ 50W MH
*LWP25-30W-CW P91K6AIF 30W 120 lm/W 5000K B2-U2-G1 3600 70+ 100W

Download PDF File

Specification
