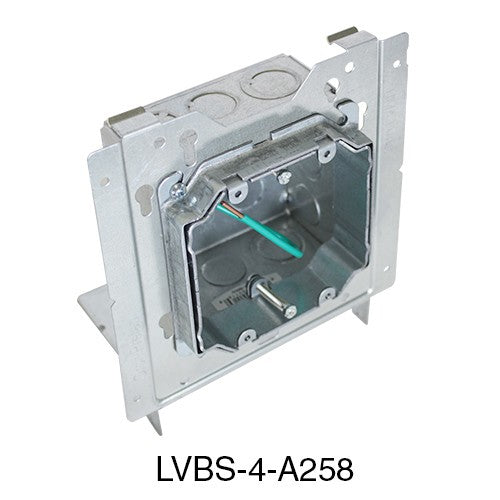

Orbit LVBS-4-A258 UMA-LVBS With 4SDB-MKO With Gs-1032-PT-10 With 4AR2G-58 - Galvanized
Orbit LVBS-4-A258 UMA-LVBS With 4SDB-MKO With Gs-1032-PT-10 With 4AR2G-58 - Galvanized

Orbit LVBS-4-A258 UMA-LVBS With 4SDB-MKO With Gs-1032-PT-10 With 4AR2G-58 - Galvanized

$11.76
Choose Pack
Choose Pack: 1 Pack

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description
Category PREASSEMBLED
Page P1-P8
Description:

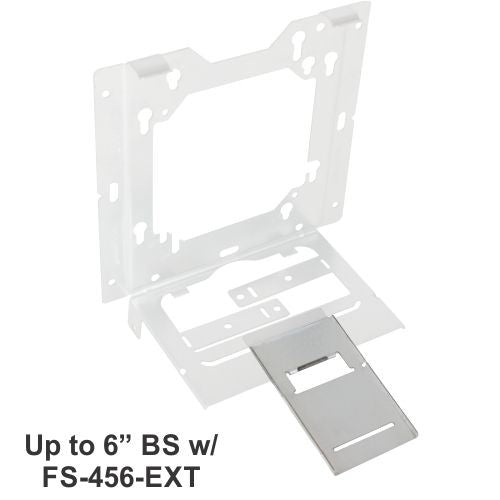

Orbitš¬¢s Preassembled UMA-LVBS with Square Box and Device Ring is a ready-to-install solution for common switch and receptacle rough-ins. LVBS Series can be deployed on the job site with little to no assembly required, saving nearly a minute per box. LVBS assemblies mount direct to open or closed sides of a wall stud, with integrated back support for 2-1/2" and 3-1/2" stud depths (extend to 6š¬� with FS-456-EXT). Mount assembly between wall studs or ceiling joists with SSB-T5. 2-1/8š¬� Deep Square Box includes 10š¬� grounding pigtail. Select models available with 1-gang and 2-gang device rings, and/or BMCS-CJ6 cable support.

Features:
- Mounts direct-to-stud, or snaps onto the SSB-T5 for stud-to-stud mounting
- Centerline cutouts and mounting holes on UMA-LVBSš¬¢s flanges allow for a quick installation onto wood or metal studs
- Top notch provides easy access to set screw fittings
- Includes far-side back support
- Box includes 10-32 Ground Screw and 10" Solid Cu. #12AWG Pigtail
- LVBS-A4 Series features MC clamp screws set at 15° angle, includes BMCS-CJ6 cable support

Specifications:
Material Sheet Steel
Color Galvanized
Standard Boxes:
KO Sides (8) - 1/2", (4) - MKO
KO Bottom (2) - 1/2", (2) - MKO
MC Cable Boxes:
KO Sides (4) - 1/2", (2) - MKO, (4) - Loom
KO Bottom (1) - 1/2"

Box Dimensions:
Width: 4"
Height: 4"
Depth: 2-1/8"
Cu In: 30.3


Catalog
Number

UPC

Description

No. of Gangs

Ring Depth

Std.
Pkg.
LVBS-4 8-35243-02796-1 UMA-LVBS + 4SDB-MKO-PT-10 - - 25
LVBS-4-158 8-35243-02725-1 UMA-LVBS + 4SDB-MKO-PT-10 + 41058 1 5/8" 25
LVBS-4-175 8-35243-02727-5 UMA-LVBS + 4SDB-MKO-PT-10 + 41075 1 3/4" 25
LVBS-4-258 8-35243-02726-8 UMA-LVBS + 4SDB-MKO-PT-10 + 42058 2 5/8" 25
LVBS-4-275 8-35243-02728-2 UMA-LVBS + 4SDB-MKO-PT-10 + 42075 2 3/4" 25
LVBS-4-A158 8-35243-02729-9 UMA-LVBS + 4SDB-MKO-PT-10 + 4AR1G-58 1 5/8" - 1-1/4" 25
LVBS-4-A134 8-35243-02730-5 UMA-LVBS + 4SDB-MKO-PT-10 + 4AR1G-34 1 3/4" 25
LVBS-4-A258 8-35243-02731-2 UMA-LVBS + 4SDB-MKO-PT-10 + 4AR2G-58 2 5/8" - 1-1/2" 25
LVBS-A4-CS6 8-35243-02925-5 UMA-LVBS + 4SDB-AMC-PT + BMCS-CJ6 - - 25
LVBS-A4-A158-CS6 8-35243-02926-2 UMA-LVBS + 4SDB-AMC-PT + 4AR1G-58 + BMCS-CJ6 1 5/8" - 1-1/2 25

Custom Assemblies:

For box and adapter assembly combinations not listed above, please contact info@orbitprofab.com. Please state the specific ring type, box size and depth, and any other pertinent notes (such as the addition of ground pigtails or firestop).
