Orbit Industries, Inc. | Product Number: LVBS-4-158

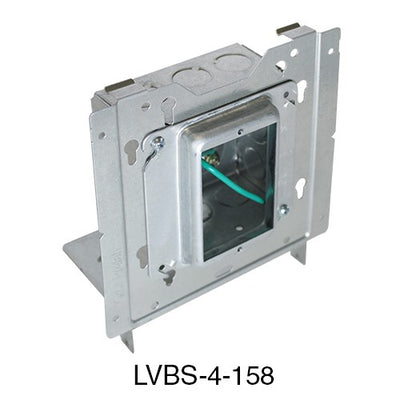

Orbit LVBS-4-158 UMA-LVBS With 4SDB-MKO-PT-10 With 41058 - Galvanized
Pairs well with
Top rated store Read 5-star reviews
Orders ship within 2 business days
30-day returns View our policy
Safe & secure checkout
Product details
Description
| Category | PREASSEMBLED |
| Page | P1-P8 |
| Description: | |

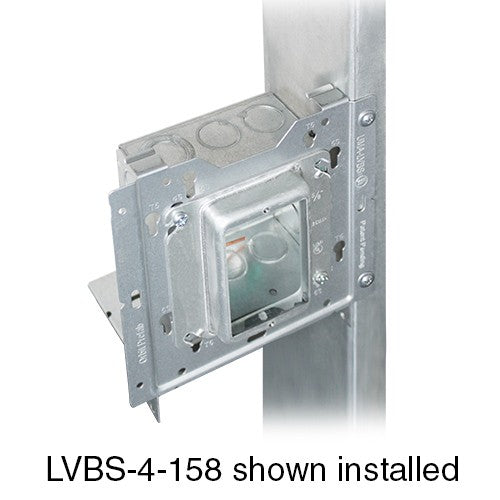

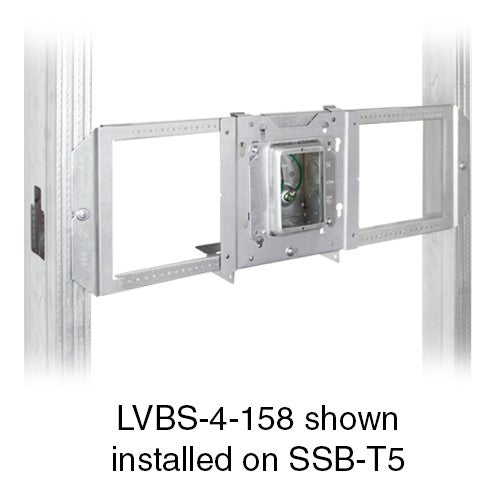

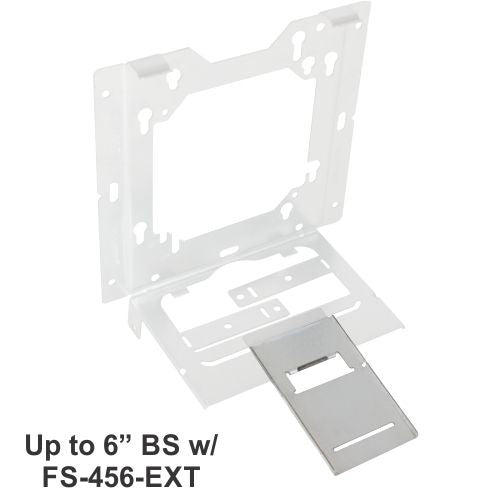

| Orbit€™s Preassembled UMA-LVBS with Square Box and Device Ring is a ready-to-install solution for common switch and receptacle rough-ins. LVBS Series can be deployed on the job site with little to no assembly required, saving nearly a minute per box. LVBS assemblies mount direct to open or closed sides of a wall stud, with integrated back support for 2-1/2" and 3-1/2" stud depths (extend to 6€� with FS-456-EXT). Mount assembly between wall studs or ceiling joists with SSB-T5. 2-1/8€� Deep Square Box includes 10€� grounding pigtail. Select models available with 1-gang and 2-gang device rings, and/or BMCS-CJ6 cable support. | |
| Features: | |
| - Mounts direct-to-stud, or snaps onto the SSB-T5 for stud-to-stud mounting - Centerline cutouts and mounting holes on UMA-LVBS€™s flanges allow for a quick installation onto wood or metal studs - Top notch provides easy access to set screw fittings - Includes far-side back support - Box includes 10-32 Ground Screw and 10" Solid Cu. #12AWG Pigtail - LVBS-A4 Series features MC clamp screws set at 15° angle, includes BMCS-CJ6 cable support |
|
| Specifications: | |
| Material | Sheet Steel |
| Color | Galvanized |
| Standard Boxes: | |
| KO Sides | (8) - 1/2", (4) - MKO |
| KO Bottom | (2) - 1/2", (2) - MKO |
| MC Cable Boxes: | |
| KO Sides | (4) - 1/2", (2) - MKO, (4) - Loom |
| KO Bottom | (1) - 1/2" |
| Box Dimensions: | |
| Width: | 4" |
| Height: | 4" |
| Depth: | 2-1/8" |
| Cu In: | 30.3 |
Catalog
|
UPC |
Description |
No. of Gangs |
Ring Depth |
Std.
|
| LVBS-4 | 8-35243-02796-1 | UMA-LVBS + 4SDB-MKO-PT-10 | - | - | 25 |
| LVBS-4-158 | 8-35243-02725-1 | UMA-LVBS + 4SDB-MKO-PT-10 + 41058 | 1 | 5/8" | 25 |
| LVBS-4-175 | 8-35243-02727-5 | UMA-LVBS + 4SDB-MKO-PT-10 + 41075 | 1 | 3/4" | 25 |
| LVBS-4-258 | 8-35243-02726-8 | UMA-LVBS + 4SDB-MKO-PT-10 + 42058 | 2 | 5/8" | 25 |
| LVBS-4-275 | 8-35243-02728-2 | UMA-LVBS + 4SDB-MKO-PT-10 + 42075 | 2 | 3/4" | 25 |
| LVBS-4-A158 | 8-35243-02729-9 | UMA-LVBS + 4SDB-MKO-PT-10 + 4AR1G-58 | 1 | 5/8" - 1-1/4" | 25 |
| LVBS-4-A134 | 8-35243-02730-5 | UMA-LVBS + 4SDB-MKO-PT-10 + 4AR1G-34 | 1 | 3/4" | 25 |
| LVBS-4-A258 | 8-35243-02731-2 | UMA-LVBS + 4SDB-MKO-PT-10 + 4AR2G-58 | 2 | 5/8" - 1-1/2" | 25 |
| LVBS-A4-CS6 | 8-35243-02925-5 | UMA-LVBS + 4SDB-AMC-PT + BMCS-CJ6 | - | - | 25 |
| LVBS-A4-A158-CS6 | 8-35243-02926-2 | UMA-LVBS + 4SDB-AMC-PT + 4AR1G-58 + BMCS-CJ6 | 1 | 5/8" - 1-1/2 | 25 |
Custom Assemblies:
For box and adapter assembly combinations not listed above, please contact info@orbitprofab.com. Please state the specific ring type, box size and depth, and any other pertinent notes (such as the addition of ground pigtails or firestop).
