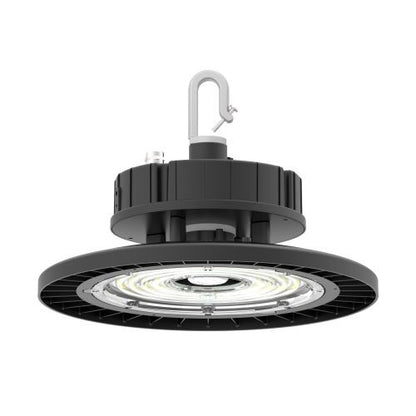

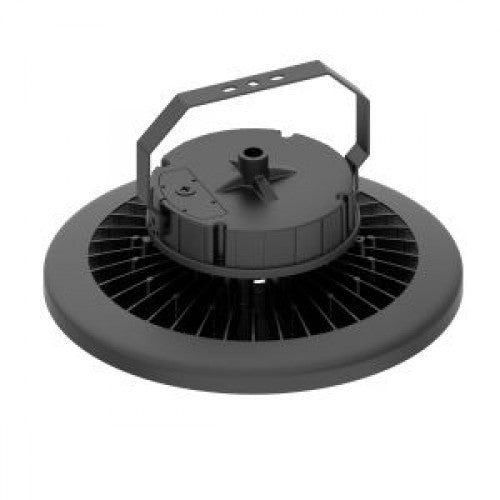

Orbit LUHB4-300W-CW 4th Gen LED UFO Highbay Adjustable 5000K - Black

Orbit Industries, Inc.SKU: LUHB4-300W-CW

Price:
Sale price$ 297.54

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Category LED
Page H9

Description:
The LUHB4 Series is UFO shape LED High Bay with low-profile design, excellent cooling structure. It is ideal for commercial areas such as warehouse, station, supermarket, or exhibition hall. It provides multiple mounting constructions for various mounting request. Adjustable Wattage on selected models. UL listed for wet locations. DLC 5.1 Premium Listed.

Specifications:   LUHB4 120V Line Drawing
Voltage: 120~277V
Power Factor: > 0.9
Housing: Die Cast Aluminum
Cord Length: 3.2 FT
Finish: UV Resistant Black Powder Coat Finish
Lens Material: High Light Transmittance Polycarbonate Lens
Ambient Operating Temp: -40°C / -40°F to 50°C / 122°F
Mount: 1/2“ heavy-duty Fixture Hook Included;
Trunnion (Sold Separately)
UL listed for Wet Location E335594
Life Hours: 50,000
Warranty: 5 Year Limited Warranty
Beam Angle: 90°
Dimmable: 0-10V/PWM/VR
Surge Protection: 4KV - 100W
6KV - 150W/230W/300W
Adjustable Wattage Models: 150W/300W

Dimensions
LUHB4-100W/150W: (A) 12-5/8” x (B) 8-9/16”
LUHB4-230W: (A) 14-3/16” x (B) 8-1/2”
LUHB4-300W: (A) 15-3/4” x (B) 8-7/16”

Certifications UL Mark DLC PM Logo Adjustable Wattage Logo  Philips Lumileds  IP65 Logo  RoHS Logo   LM-79  5 Year Warranty DIMMABLE


Catalog
Number

DLC
Product ID

System Wattage

Efficacy

Color
Temp

Lumens

CRI

Wattage Equivalent

LUHB4-100W-CW P0IDN1PP 100W 150 lm/W 5000K 15000 80+ 400W MH
LUHB4-150W-CW PM588RTY 50W
80W
100W
150W
148 lm/W 5000K 7400
11840
14800
22200
80+ Up to
750W MH
LUHB4-230W-CW P903L205 230W 145 lm/W 5000K 33350 80+ 1000W MH
LUHB4-300W-CW PH54PSNY 150W
200W
240W
300W
140 lm/W 5000K 21000
28000
33600
42000
80+ Up to
1000W MH
