- Brand: Orbit Industries, Inc.
- Part #: LTL-60W-CW

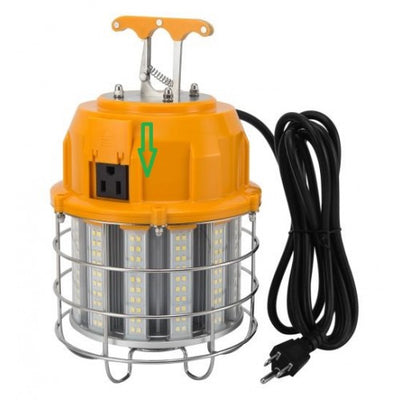

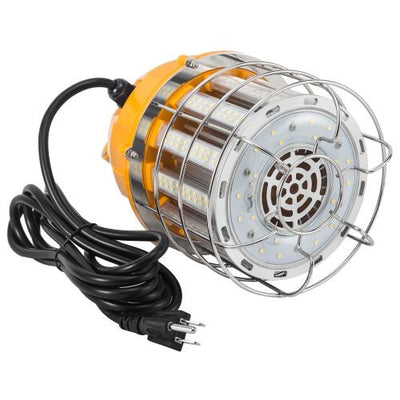

Orbit LTL-60W-CW LED Temporary Light, 10ft Male Plug, Female Receptacle, 60W, 5000K
Couldn't load pickup availability
Pickup available at Sonic Distribution Center
Usually ready in 24 hoursPairs well with
Orbit LTL-60W-CW LED Temporary Light, 10ft Male Plug, Female Receptacle, 60W, 5000K
Fast & Reliable Shipping
Orders processed in 1–2 business days.
Hassle-Free Returns
30-day returns on eligible items. Read Terms
Knowledgeable Support
Get expert help via chat, email or phone.
Top-Rated Store
Trusted by 20,000+ customers. Read Reviews
Product Details
Description
| Category | LED | |
| Page | H10 | |
| Description: | ||

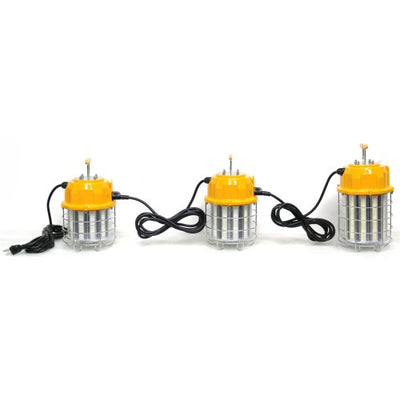

| Orbit industries' LED Temporary Work Light (LTL Series) is an energy efficiency solution for a wide range of construction jobsites. UL Listed for Damp Location (IP63), the LTL Series has stainless steel cage and hook to ensure durability in heavy duty construction environments. With a 10ft male plug cord and hidden socket, LTL Series can connect up to 14pcs of 60W fixtures, 8pcs of 100W fixtures, 5pcs of 150W fixtures, or a combination of the three, not exceeding 900W at the same time. UL Listed. | ||
| Specifications: |
|
|
| Voltage: | 120~277V, 50-60Hz | |
| Power Factor: | > 0.9 | |
| Housing: | Stainless Steel Lamp Cage | |
| Wiring: | 3 Prong, Male Plug with 10FT 18AWG Cord 3 Prong, hidden built-in Socket |
|
| Ambient Operating Temp: | -40°C / -40°F to 60°C / 140°F | |
| Mount: | Stainless Steel Portable Hook with flexible spring | |
| Optional Bracket: (Order Seperately) |

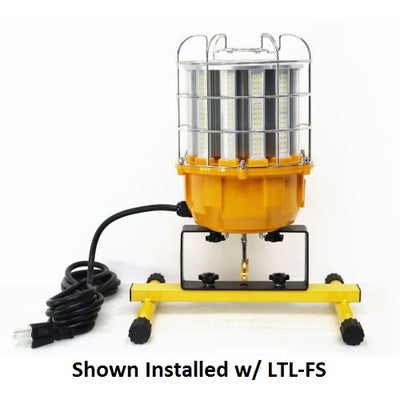

Floor Stand Bracket: LTL-FS | |

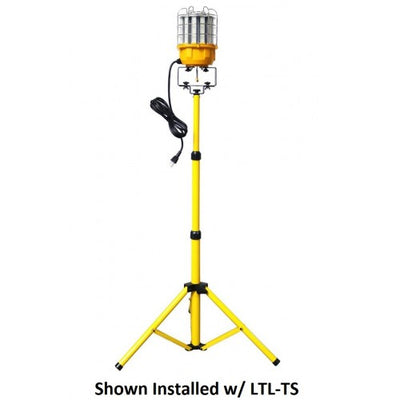

| Tripod Stand Bracket: LTL-TS | ||
| UL listed: | E503394 | |
| Life Hours: | 50,000 | |
| Warranty: | 5 Year Limited Warranty | |
| Beam Angle: | 313° | |
| UL Listed for Damp Location (IP63) | ||
| Dimensions | ||
| LTL-60W-CW: (A) 6-1/2" x (B) 10-3/4" x (C) 5-1/8" | ||
| LTL-100W-CW: (A) 6-1/2" x (B) 11-5/16" x (C) 5-11/16" | ||
| LTL-150W-CW: (A) 6-1/2" x (B) 12-11/16" x (C) 7-1/16" | ||
| Certifications |
   |
|
Catalog
|
UPC |
Voltage |
System Wattage |
Surge Voltage |
Color
|
Lumens |
CRI |
Wattage Equivalent |
| LTL-60W-CW | 615624013116 | 120~277V | 60W | 6KV | 5000K | 7200 | 80+ | 250W MH |
| LTL-100W-CW | 615624013123 | 120~277V | 100W | 6KV | 5000K | 12000 | 80+ | 400W MH |
| LTL-150W-CW | 615624013130 | 120~277V | 150W | 10KV | 5000K | 18000 | 80+ | 600W MH |
