Description
Category | LED | |
Page | H10 | |
Description: | ||

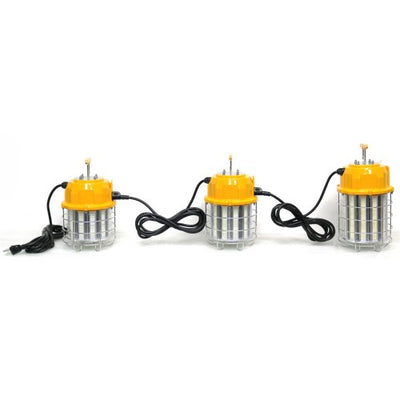

Orbit industries' LED Temporary Work Light (LTL Series) is an energy efficiency solution for a wide range of construction jobsites. UL Listed for Damp Location (IP63), the LTL Series has stainless steel cage and hook to ensure durability in heavy duty construction environments. With a 10ft male plug cord and hidden socket, LTL Series can connect up to 14pcs of 60W fixtures, 8pcs of 100W fixtures, 5pcs of 150W fixtures, or a combination of the three, not exceeding 900W at the same time. UL Listed. | ||
Specifications: | ||
Voltage: | 120~277V, 50-60Hz | |
Power Factor: | > 0.9 | |
Housing: | Stainless Steel Lamp Cage | |

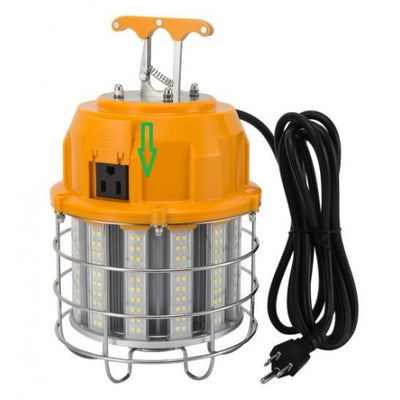

Wiring: | 3 Prong, Male Plug with 10FT 18AWG Cord 3 Prong, hidden built-in Socket |
|
Ambient Operating Temp: | -40°C / -40°F to 60°C / 140°F | |
Mount: | Stainless Steel Portable Hook with flexible spring | |
Optional Bracket: (Order Seperately) |

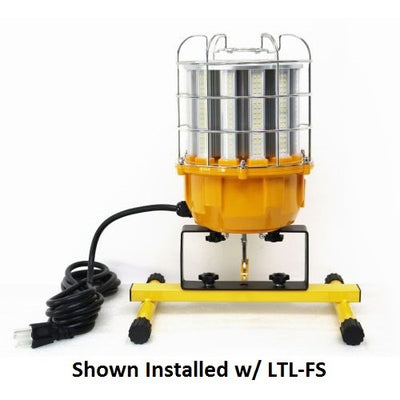

Floor Stand Bracket: LTL-FS | |

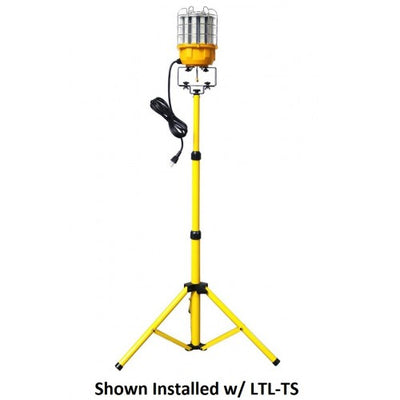

Tripod Stand Bracket: LTL-TS | ||
UL listed: | E503394 | |
Life Hours: | 50,000 | |
Warranty: | 5 Year Limited Warranty | |
Beam Angle: | 313° | |
UL Listed for Damp Location (IP63) | ||
Dimensions | ||
LTL-60W-CW: (A) 6-1/2" x (B) 10-3/4" x (C) 5-1/8" | ||
LTL-100W-CW: (A) 6-1/2" x (B) 11-5/16" x (C) 5-11/16" | ||
LTL-150W-CW: (A) 6-1/2" x (B) 12-11/16" x (C) 7-1/16" | ||
Certifications | ||
Catalog
|
UPC |
Voltage |
System Wattage |
Surge Voltage |
Color
|
Lumens |
CRI |
Wattage Equivalent |
LTL-60W-CW | 615624013116 | 120~277V | 60W | 6KV | 5000K | 7200 | 80+ | 250W MH |
LTL-100W-CW | 615624013123 | 120~277V | 100W | 6KV | 5000K | 12000 | 80+ | 400W MH |
LTL-150W-CW | 615624013130 | 120~277V | 150W | 10KV | 5000K | 18000 | 80+ | 600W MH |
