Orbit LTL-100W-CW LED Temporary Light, 10ft Male Plug, Female Receptacle, 100W, 5000K

Orbit Industries, Inc.SKU: LTL-100W-CW

Choose Pack: 1 Pack
Price:
Sale price$137.50

Shipping calculated at checkout

Stock:
In stock

Description

Category LED
Page H10

Description:

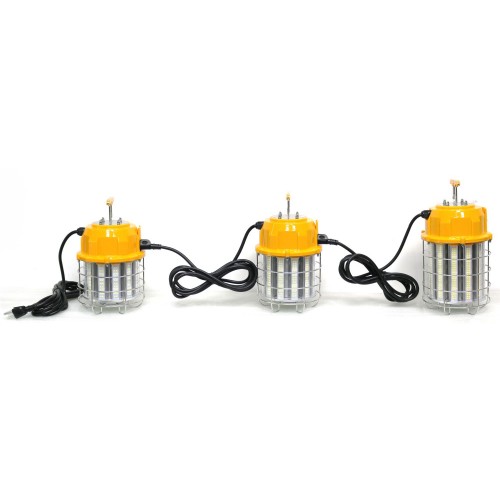

Orbit industries' LED Temporary Work Light (LTL Series) is an energy efficiency solution for a wide range of construction jobsites. UL Listed for Damp Location (IP63), the LTL Series has stainless steel cage and hook to ensure durability in heavy duty construction environments. With a 10ft male plug cord and hidden socket, LTL Series can connect up to 14pcs of 60W fixtures, 8pcs of 100W fixtures, 5pcs of 150W fixtures, or a combination of the three, not exceeding 900W at the same time. UL Listed.

Specifications:

LTL Series Line Drawing

Voltage: 120~277V, 50-60Hz
Power Factor: > 0.9
Housing: Stainless Steel Lamp Cage
Wiring: 3 Prong, Male Plug with 10FT 18AWG Cord

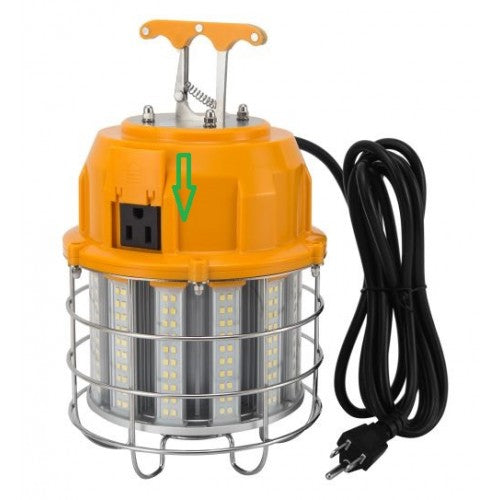

3 Prong, hidden built-in Socket
Ambient Operating Temp: -40°C / -40°F to 60°C / 140°F
Mount: Stainless Steel Portable Hook with flexible spring
Optional Bracket:
(Order Seperately)

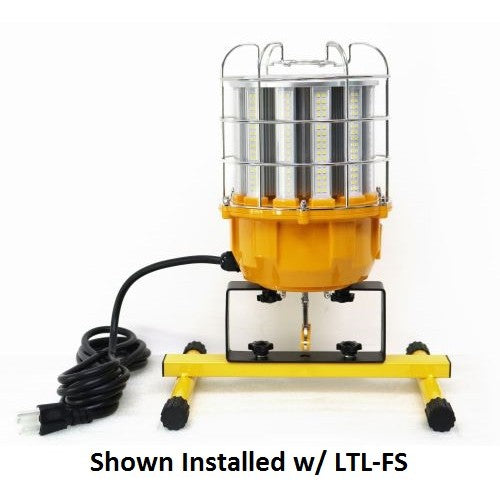

Floor Stand Bracket: LTL-FS

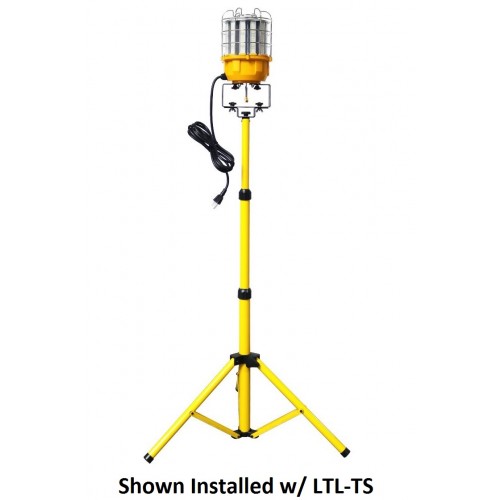

Tripod Stand Bracket: LTL-TS
UL listed: E503394
Life Hours: 50,000
Warranty: 5 Year Limited Warranty
Beam Angle: 313°
UL Listed for Damp Location (IP63)

Dimensions
LTL-60W-CW: (A) 6-1/2" x (B) 10-3/4" x (C) 5-1/8"
LTL-100W-CW: (A) 6-1/2" x (B) 11-5/16" x (C) 5-11/16"
LTL-150W-CW: (A) 6-1/2" x (B) 12-11/16" x (C) 7-1/16"

Certifications UL Mark RoHS Logo  5 Year Warranty


Catalog
Number

UPC

Voltage

System Wattage

Surge Voltage

Color
Temp

Lumens

CRI

Wattage Equivalent

LTL-60W-CW 615624013116 120~277V 60W 6KV 5000K 7200 80+ 250W MH
LTL-100W-CW 615624013123 120~277V 100W 6KV 5000K 12000 80+ 400W MH
LTL-150W-CW 615624013130 120~277V 150W 10KV 5000K 18000 80+ 600W MH

Download PDF File

Specification
