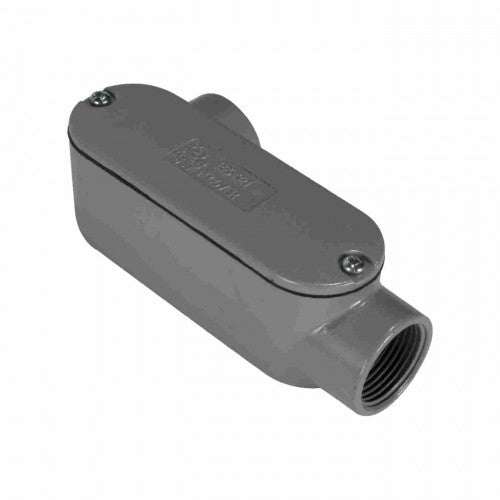

Orbit LL-300A Type LL Threaded Conduit Body 3" With Die Cast Cover


Price:
Sale price$59.66

Shipping calculated at checkout

Stock:
In stock

Description

Category CONDUIT BODY
Page E1
Description:
Orbit Industries threaded conduit bodies are commonly used for electrical service entrance wires or as an economical convenience box when extra wire capacity is needed. They are attached to threaded rigid or IMC conduits when a change of direction is required. The removable cover makes general maintenance and wire pulling and feed through easy and convenient. Orbit Industries threaded conduit bodies save time and money by eliminating costly bending of large conduits in order to change the directions of conduit runs. Installers can easily bend wires into the smooth turns. Their powder-coated finish and water-tight gasket ensure a weatherproof installation.
Features:
- Die Cast Copper-Free Aluminum
- With Die Cast Cover
- Neoprene Gasket
- Gray color
- Suitable for wet location when used with Gasket and Cover
- NPT Thread Hubs

Certifications:
 UL  rohs

UL File Number:
E227970

CAT NO UPC TRADE SIZE COLOR STD PKG MASTER CTN
LL-50A 8-35243-00184-8 1/2" Gray 10 40
LL-75A 8-35243-00186-2 3/4" Gray 10 40
LL-150A 8-35243-00881-6 1-1/2" Gray 2 8
LL-200A 8-35243-00882-3 2" Gray 1 -
LL-300A 8-35243-00502-0 3" Gray 1 -
LL-400A 8-35243-00503-7 4" Gray 1 -

Download PDF File

Specification
