Orbit LFL10-300W-P LED Light With PC Without Mount 150W~300W Adjustable 120~277V - Bronze

Orbit Industries, Inc.SKU: LFL10-300W-P

Price:
Sale price$ 327.44

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Category LED
Page H3

Description:

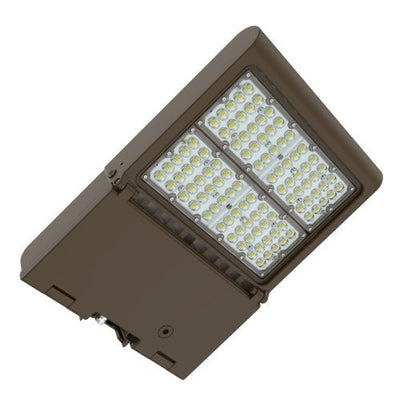

The LFL10 Series are powerful LED Area Lights ideal for outdoor applications such as exterior building lighting, roadways, loading docks, or parking areas. Compared to traditional area lighting, the slim design of these Ultra-Bright LED Area Lights makes them lighter in weight, easier to install. Unlike other Area Lights, the LFL10 can be mounted and wired without having to access inside the fixture making the installation process even faster. Pre-installed Photocell on all models and Adjustable Wattage on selected models. UL listed for Wet Locations. DLC 5.1 Premium Listed.

Specifications:
Voltage: 120~277V







LFL10 Line Drawing

Power Factor: > 0.9
Distribution Type: TYPE III
Housing: ADC12 Die Cast Aluminum
Finish: UV Resistant Bronze Powder Coat Finish
Lens Material: High Light Transmittance Polycarbonate Lens with Weatherproof Gasket
Ambient Operating Temp: -40°C / -40°F to 40°C / 104°F

Mounting Options (Sold Separately):
2-3/8" I.D. Slip Fitter with 180° Adjustability LFL10-SF
Trunnion LFL10-T
Post Mount LFL10-PM
Yoke Mount LFL10-YK
SF to PM Adapter SFPMA

UL listed for Wet Location E335594
Life Hours: 50,000
Warranty: 5 Year Limited Warranty
Beam Angle: 90° x 115° (80W/100W)
135° x 150° (150W)
115° x 145° (230W)
125° x 150° (300W)
120° x 145° (400W)

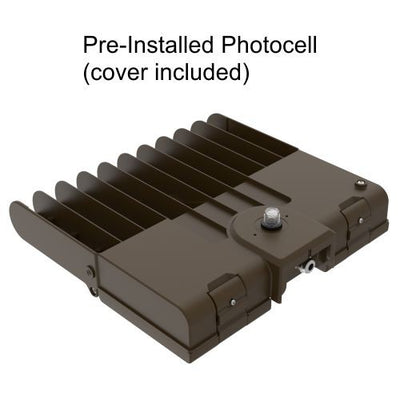

Photocell: Pre-installed with Cover
Dimmable: 0-10V/PWM/VR

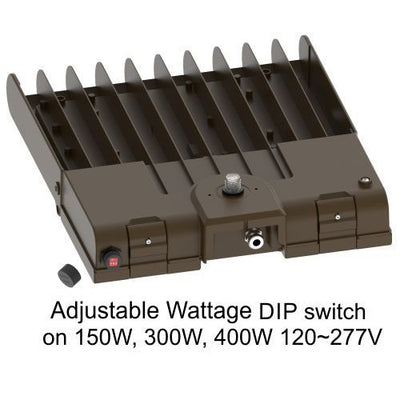

Adjustable Wattage Models: 150W/300W/400W

Dimensions
LFL10-80W/100W/150W-P: (A) 12-5/8" x (B) 12-1/4" x (C) 3-1/4"
LFL10-230W-P: (A) 12-5/8" x (B) 14-3/4" x (C) 3-1/4"
LFL10-300W-P: (A) 12-5/8" x (B) 17-7/8" x (C) 3-1/2"
LFL10-400W-P: (A) 12-5/8" x (B) 22-3/8" x (C) 3-1/2"

Certifications UL Mark DLC PM Logo Adjustable Wattage Logo  Philips Lumileds  IP65 Logo  RoHS Logo   LM-79  5 Year Warranty DIMMABLE

Literature

Catalog
Number

DLC
Product ID

System Wattage

Efficacy

Color
Temp

BUG Rating

Lumens

CRI

Wattage Equivalent

LFL10-80W-P P1FAK5ZD/
PGJ49785
80W 142 lm/W 5000K B2-U0-G2 11000 70+ 250W MH
LFL10-100W-P P560IXUR/
PZU1HG2D
100W 137 lm/W 5000K B3-U0-G2 13125 70+ 400W MH
LFL10-150W-P P9N9BKPA/
PZ196H6D
50W
80W
100W
150W
133 lm/W 5000K B3-U0-G3 6650
10640
13300
20137
70+ Up to
750W MH
LFL10-230W-P PP3YIZDW/
PYF6LPY3
230W 143 lm/W 5000K B4-U0-G4 33457 70+ 1000W MH
LFL10-300W-P PCDT4TLP/
PW6A1GYY
150W
200W
240W
300W
144 lm/W 5000K B5-U0-G4 21600
28800
34560
41466
70+ Up to
1000W MH
LFL10-400W-P PN1I7YNF/
PS0IW7LP
230W
300W
350W
400W
 141 lm/W  5000K B5-U0-G5 32430
42300
49350
56047
 70+ Up to
1200W
 MH

Download PDF File
