Description
Category | LED | |
Page | H3 | |
Description: | ||

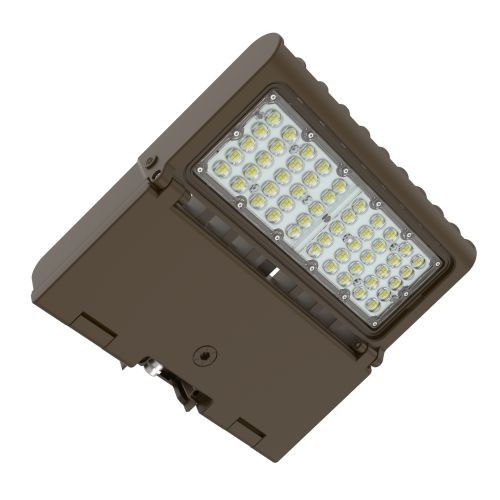

The LFL10 Series are powerful LED Area Lights ideal for outdoor applications such as exterior building lighting, roadways, loading docks, or parking areas. Compared to traditional area lighting, the slim design of these Ultra-Bright LED Area Lights makes them lighter in weight, easier to install. Unlike other Area Lights, the LFL10 can be mounted and wired without having to access inside the fixture making the installation process even faster. Pre-installed Photocell on all models and Adjustable Wattage on selected models. UL listed for Wet Locations. DLC 5.1 Premium Listed. | ||
Specifications: | |
|
Voltage: | 277~480V | |
Power Factor: | > 0.9 | |
Distribution Type: | TYPE III | |
Housing: | ADC12 Die Cast Aluminum | |
Finish: | UV Resistant Bronze Powder Coat Finish | |
Lens Material: | High Light Transmittance Polycarbonate Lens with Weatherproof Gasket | |
Ambient Operating Temp: | -40°C / -40°F to 40°C / 104°F | |
Mounting Options (Sold Separately): | ||
2-3/8" I.D. Slip Fitter with 180° Adjustability | LFL10-SF | |
Trunnion | LFL10-T | |
Post Mount | LFL10-PM | |
Yoke Mount | LFL10-YK | |
SF to PM Adapter | SFPMA | |
UL listed for Wet Location | E335594 | |
Life Hours: | 50,000 | |
Warranty: | 5 Year Limited Warranty | |
Beam Angle: | 115° x 145° (400W) | |
Photocell: | Pre-installed with Cover | |
Dimmable: | 0-10V/PWM/VR | |
Dimensions | ||
LFL10-150W-P-480V: (A) 12-5/8" x (B) 12-1/4" x (C) 3-1/4" | ||
LFL10-230W-P-480V: (A) 12-5/8" x (B) 14-3/4" x (C) 3-1/4" | ||
LFL10-300W-P-480V: (A) 12-5/8" x (B) 17-7/8" x (C) 3-1/2" | ||
LFL10-400W-P-480V: (A) 12-5/8" x (B) 22-3/8" x (C) 3-1/2" | ||
Certifications | ||
Literature |
Catalog
|
DLC
|
System Wattage |
Efficacy |
Color
|
BUG Rating |
Lumens |
CRI |
Wattage Equivalent |
LFL10-150W-P-480V | PFH92IQP | 150W | 126 lm/W | 5000K | B3-U0-G3 | 18933 | 70+ | 750W MH |
LFL10-230W-P-480V | P9GVE125/ PNL7PLFH |
230W | 141 lm/W | 5000K | B4-U0-G4 | 31735 | 70+ | 1000W MH |
LFL10-300W-P-480V | PIFVMO8E | 300W | 126 lm/W | 5000K | B4-U0-G4 | 37025 | 70+ | 1000W MH |
LFL10-400W-P-480V | P3NCJ5VD/ PPIC2PUU |
400W | 148 lm/W | 5000K | B5-U0-G5 | 57435 | 70+ | 1200W MH |
