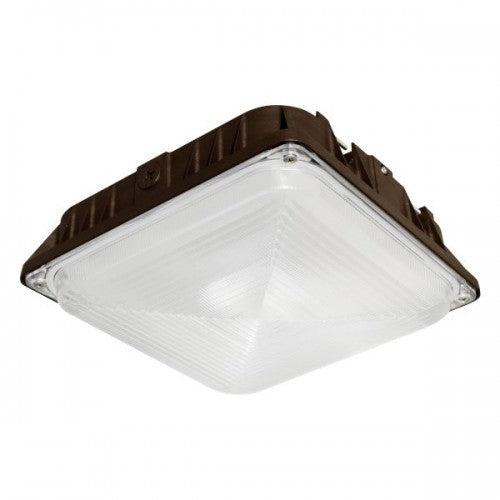

Orbit LCM7-40W-CW Slim LED Canopy Motion Compatible 40W 120~277V 5000K - Bronze

Orbit Industries, Inc.SKU: LCM7-40W-CW

Choose Pack: 1 Pack
Price:
Sale price$91.53

Shipping calculated at checkout

Stock:
In stock

Description

Category LED
Page H10

Description:
The LCM7 is a low-profile, ultra-light weight outdoor LED canopy light. The LCM7 housing is constructed of die cast aluminum, with a bronze powder coat finish for extra corrosion resistance. The hinged and removable mounting plate design provides quick and convenient installation, and labor savings. With motion sensor compatible, LCM7 series is ideal for parking garages, security lightings. UL Listed for Wet Locations. DLC 5.1 Premium Listed.

Specifications:   LCM7
Voltage: 120~277V
Power Factor: > 0.9
Distribution Type: TYPE VS
Housing: ADC12 Die Cast Aluminum
Finish: UV Resistant Bronze Powder Coat Finish
Lens Material: Prismatic Polycarbonate Lens with Weatherproof Gasket
Ambient Operating Temp: -40°C / -40°F to 40°C / 104°F
Mount: Ceiling Mount, Pendant
UL listed for Wet Location E335594
Life Hours: 50,000
Warranty: 5 Year Limited Warranty
Beam Angle: 150° x 150°
Motion Sensor: LCM7-M (Order Separately)
Dimmable: 0-10V/PWM/VR

Dimensions
LCM7-40W-CW: (A) 8" x (B) 8" x (C) 3"
LCM7-60W-CW: (A) 10" x (B) 10" x (C) 3-1/4"
LCM7-75W-CW: (A) 10" x (B) 10" x (C) 3-1/4"

Certifications UL Mark DLC PM Logo Philips Lumileds   RoHS Logo   IP65 Logo   LM-79   5 Year Warranty Dimmable


Catalog
Number

DLC
Product ID

System Wattage

Efficacy

Color
Temp

BUG Rating

Lumens

CRI

Wattage Equivalent

LCM7-40W-CW PIYFB5TI 40W 126 lm/W 5000K B2-U2-G2 4814 80+ 150W MH
LCM7-60W-CW PEZ8WZI3 60W 126 lm/W 5000K B3-U3-G2 7074 80+ 175W MH
LCM7-75W-CW PLEP1Z7R 75W 132 lm/W 5000K B3-U3-G2 9900 80+ 250W MH

Download PDF File

Specification
