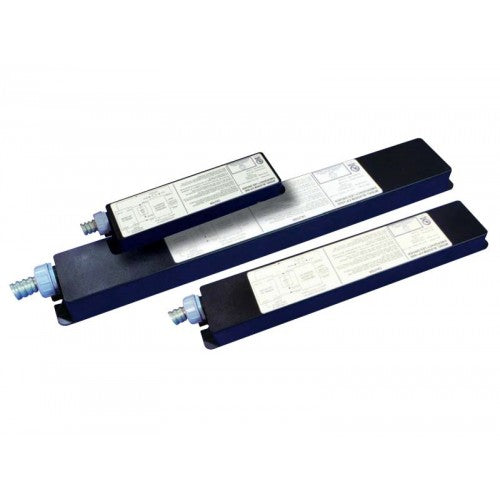

Orbit LBAL2000 LED Emergency Lighting Ballast, 13.7W, 2000 Lumens


Choose Pack: 1 Pack
Price:
Sale price$236.58

Shipping calculated at checkout

Stock:
In stock

Description

Category Line Voltage
Page H15
Features:
- Dual-Voltage Input 120/277VAC Operation
- UL Classified for field installation
- Suitable for Damp Location (0°C - 50°C)
- Provides constant power output to the load during emergency mode operation
- 90 minute minimum emergency operation over full temperature range
- Injection Molded, engineering grade, 5VA Flame Retardant, high-impact, thermoplastic
- Black finish
- Installs inside, on top, or in remote of the fixture
- Output short/overcurrent protection: Electronic limiting, with normal operation resuming upon removal of fault
- Can be operated as NORMALLY-ON, NORMALLY-OFF or SWITCHED LOAD
- Output classification: Class 2 Compliant
- Surge protection: Per C62.41 (TVS)
- Input overcurrent protection: Fusible Link
- LED illuminated and remote mounted test switch
- Charge/Power €œON€� LED indicator light and push-to-test switch
- Maintenance-free, rechargeable NiCd Battery
- 24 Hour max battery recharge time
- 5 year warranty on electronics and housing
- Meets UL924, NFPA 101 Life Safety Code

Certification:
  ul classified logo

Catalog
Number

UPC

Output
Voltage
(Vdc)

Output
Current
(mAdc)

Output
System
Wattage
(Constant)

Output
Lumens

Input Current (A)

Input Power (W)

LBAL800 615624013383 20 - 50 250 - 100 5 800 0.061 3.9
LBAL1200 615624013390 20 - 50 390 - 156 7.8 1250 0.065 4.8
LBAL1600 615624013406 20 - 50 535 - 214 10.7 1700 0.087 5.7
LBAL2000 615624013413 20 - 50 685 - 274 13.7 2200 0.11 6.9
LBAL2400 615624013420 20 - 50 850 - 340 17 2700 0.11 7.9

*Lumen output based on LED light source having efficacy of 160 lm/w. Actual output may vary depending on light source.

ORBIT LED LIGHTS COMPATIBILITY TABLE

LWP1-28W-WW LWP25-12W-CW LWP2-80W-CW LCM2-45W-CW
LWP1-50W-CW LWP25-12W-WW LP741-30W-P-CW LCM2-60W-CW
LWP1-80W-CW LWP25-30W-CW LCM7-40W-CW LFL6-80W-T/SF

Download PDF File

Specification
