Description
Category | LED | |
Page | H2 | |
Description: | ||

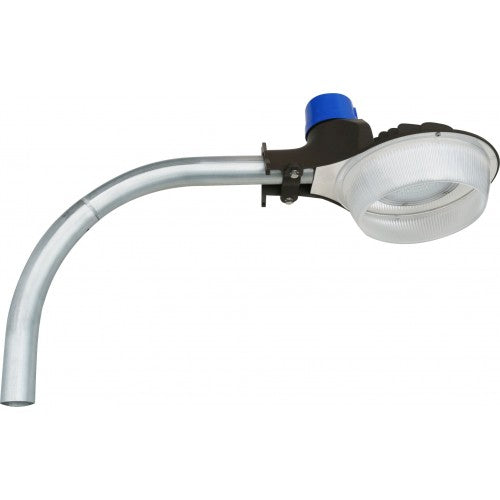

The LAL1-P Area Light from Orbit Industries is a powerful LED area light for everyday outdoor uses. Ideal for parking areas, outdoor recreational areas, or warehouses, its Die Cast design and low power consumption provide long reliable service. UL listed for Wet Locations. DLC Premium Listed. | ||
Specifications: |
|
|
Voltage: | 120~277V | |
Power Factor: | > 0.9 | |
Distribution Type: | TYPE VS | |
Housing: | ADC12 Die Cast Aluminum | |
Finish: | UV Resistant Bronze Powder Coat Finish | |
Lens Material: | Polycarbonate Lens with Weatherproof Gasket | |
Ambient Operating Temp: | -40°C / -40°F to 40°C / 104°F | |
Mount: | Wall Mount, 90° Extension Arm Included |
|
UL listed for Wet Location | E335594 | |
Life Hours: | 50,000 | |
Warranty: | 5 Year Limited Warranty | |
Beam Angle: | 50W: 103° 80W: 78° |
|
Photocell Optional: | Twist-Lock Photocell Included | |
Dimmable: | 0-10V | |
Adjustable Wattage Models: | 50W | |
Dimensions | ||
LAL1-50W-P-CW: (A) 7" x (B) 21-1/4" x (C) 13-1/2" x (D) 24" x (E) 9-1/2" | ||
LAL1-80W-P-CW: (A) 7-15/16" x (B) 19" x (C) 18-3/8" x (D) 27-13/16" x (E) 11" | ||
Certifications | * | |
Catalog
|
DLC
|
System Wattage |
Efficacy |
Color
|
BUG Rating |
Lumens |
CRI |
Wattage Equivalent |
*LAL1-50W-P-CW | PL2O4HWNOCHN | 20W 30W 40W 50W |
138 lm/W | 5000K | B2-U3-G1 | 2760 4140 5520 6435 |
70+ | Up to 175W MH |
LAL1-80W-P-CW | PR3WKCB9 | 80W | 151 lm/W | 5000K | B3-U3-G2 | 11227 | 70+ | 250W MH |
