Orbit KB-18 Kick Bracket 18" Height, 1-Box Position


Choose Pack: 1 Pack
Price:
Sale price$8.33

Shipping calculated at checkout

Stock:
In stock

Description

Category PREFAB
Page P13-P14
Barcode 8-35243-02215-7
Description:
Discover the 18” Kick Bracket (KB-18) from Orbit Industries, a game-changer in electrical box mounting. Tailored for 4", 4-11/16", and 5" sq. boxes, the floor bracket is perfect for installing a box set at 18” box center. Keyhole design allows 90-degree box rotation. The KB-18 includes up to 6" built-in back support for additional stability. Optional stud supports can be folded out when installed between studs. The integrated CS-CJ6 provides cable support, complemented by a notch for easy set screw access. Add extra 4", 4-11/16", and 5" sq. boxes by attaching an UMA-LVBS onto either side of the KB-18. UL Listed.

Features (Model Revised in January 2024):

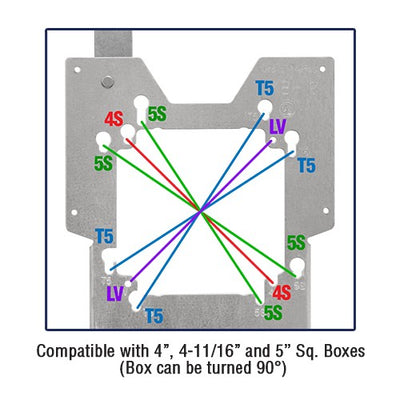

- Compatible with 4", 4-11/16" and 5" square boxes
- Measures at a standard height of 18" box center
- Unique key-hole pattern allows box to be turned 90°
- Use 4” rings on any size box (horizontally and vertically)
- Key-hole pattern holds any size box in place when ring is removed
- 4” rings can be mounted on their own for low voltage applications using 8/32 screws
- Bendable bottom center mark indicates bracket placement after drywall installation
- Up to 6" Back Support for additional stability

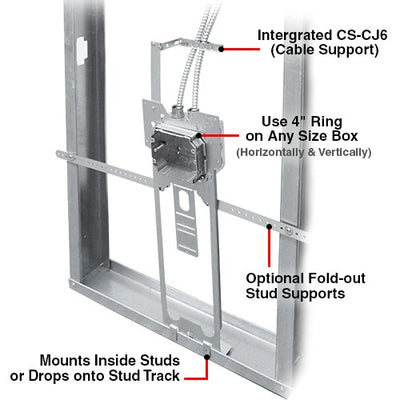

- Optional Stud Supports can be folded out when installed between studs
- Bottom tabs allow for brackets to be installed under or dropped onto the stud track
- Pre-installed CS-CJ6 for cable support

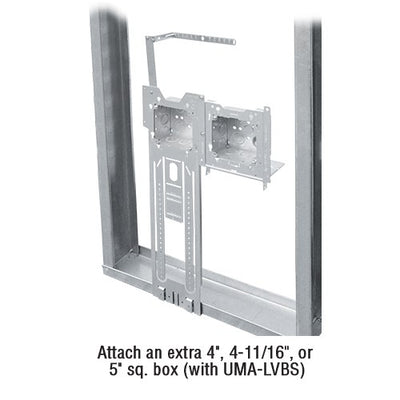

Attach an extra 4", 4-11/16", or 5" sq. box (with UMA-LVBS)
- Low profile design accepts up to 2” fittings
- Top notch provides easy access to set screw fittings

Specifications:
Material Zinc Plated Steel
Mfg. Process Stamped

Packaging Info:
Std Pkg 10
Weight 13.2 lbs.

Certifications:
UL

UL File Number:
E310661
