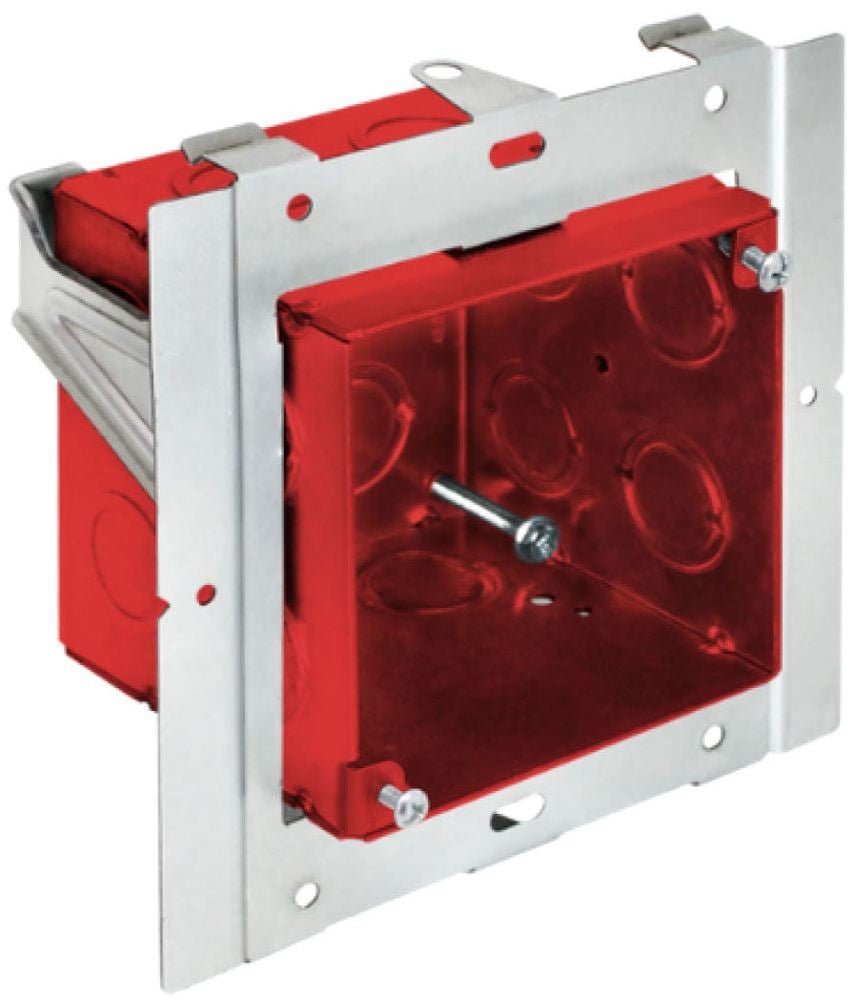

Orbit FA - UMIAB - 25 Red 4" Square 2 - 1/2" Deep Box Internal Adj. From 1/2" - 1 - 1/4" - Sonic Electric

Orbit FA-UMIAB-25 Red 4" Square 2-1/2" Deep Box Internal Adj. From 1/2"-1-1/4"

$10.87
Choose Pack
Choose Pack: 1 Pack

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description
Orbit's Universal Mounting Internal Adjustment Boxes (UMIAB Series) are 4" Sq.  Boxes with a built-in adapter for mounting and adjusting the box to fit various Electrical or Fire Life Safety applications. Built-in adapter allows for adjustment of the UMIAB-35™s from 1/2" to 1-1/2" and the UMIAB-25™s from 1/2" to 1-1/4�, ensuring devices sit flush with wall surfaces. UMIAB™s mount direct to stud frames. Mount UMIAB™s between studs or joists with Orbit's SSB-T5; or between drop ceiling grids with SSB-TBAR. Internal Adjustment allows for box adjustment both before or after dry wall installation. FA-UMIAB-25 are powder coated red for quick identification of FA devices.

Features:

- The Best Way to mount Extra Deep 4" Square Boxes
- Internal adjustment screws allow the box to be adjusted before and after dry wall installation
- Built-In Internal Adjustment from 1/2" to 1-1/2� for the UMIAB-35™s and 1/2" to 1-1/4� for UMIAB-25™s
- UMIAB-25™s ideal for use with 2-1/2� Deep Wall Studs
- Can be mounted directly to studs or snapped onto SSB-T5 for between stud or overhead/hard lid applications and SSB-TBAR for drop ceiling applications
- Available in a Red Finish as the FA-UMIAB-25 for Fire Alarm Installations
- Ideal for Life Safety systems rough-in
- Engraved depth stamp on box allows for depth measurement without requiring additional measuring tools
- Branch Line Restraint holes

* For a 4" octagon (4O) box version, please see UMAB-4R Series.
* For External Adj. Version, please see UMAB Series.

Dimensions:
Width 4"
Height 4"
Depth See chart below
Cu In See chart below

Specifications:
Material 16 GA Sheet Steel
Mfg. Process Welded
Color Red / Steel
KO Sides See chart below
KO Bottom See chart below

Certifications:
steel products ul certification  RoHS Logo

UL File Number:
E227970


Literature


Catalog
Number

UPC

 Description

Box Depth

Cu. In.

Adj. Range

KO Sides

KO Bottom

Std. Pkg.
UMIAB-25 8-35243-03824-0 Internal Adj. 4" Sq. Box  2-1/2" 36.0 1/2"
-
1-1/4"		 (4) - 1/2",
(4) - MKO		 (4) CKO 10
FA-UMIAB-25 8-35243-03825-7 Internal Adj. 4" Sq. Box, Red Powder Coat Finish 10
UMIAB-35 8-35243-03826-4 Internal Adj. 4" Sq. Box 3-1/2" 46.0 1/2"
-
1-1/2"		 (12) CKO (4) CKO 10
