Description
Category | PREFAB |
Page | P1-P8 |
Barcode | 8-35243-02561-5 |
Description: | |

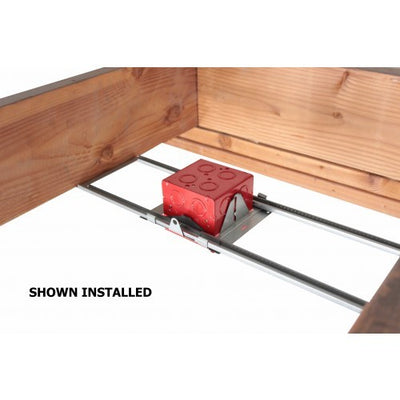

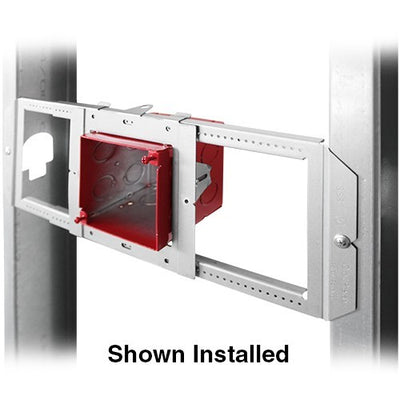

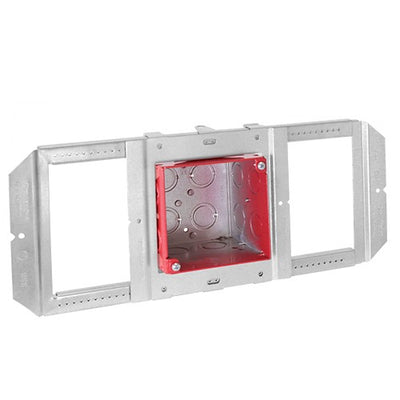

Orbit's Preassembled SSB-T5 with FA-UMAB is a ready-to-install solution for mounting life safety devices between wall studs or hard-lid ceiling joists. The SSB-T5 adjusts from 15” to 25” with the FA-UMAB attached to bracket. FA-UMAB’s built-in adapter allows for box depth adjustment from 0" to 1-1/2", ensuring box opening is flush with finished drywall. This 4” sq. box is 3-1/2" deep - ideal for oversize horn strobes and other notification devices. FA-UMAB is powder coated with a red finish. SSB-T5 maintains rigidity at full 25” extension, so there is no need for added back support. | |
Features: | |
- Telescoping bracket adjusts from 15" to 25" - Mount boxes between studs or overhead between hard lid ceiling joists - Maintains rigidity when fully extended, eliminating need for back support - 6-way adjustability - Built-in adapter allows box adjustment from flush to 1-1/2" via guided slots (ships with box set at 5/8” raised) - Two (2) outside-facing screws lock box at desired depth - Ships preassembled to reduce installation time - Patented |
|
Specifications: | |
Material | 16 GA Sheet Steel |
Color | Galvanized (SSB-T5) Red (FA-UMAB) |
Mfg. Process | Welded |
KO Sides: | (12) - CKO |
KO Bottom: | (4) - CKO |
Specifications: | |
Width: | 4" |
Height: | 4" |
Depth: | 3-1/2" |
Cu In: | 46.0 |
Packaging Info: | |
Std Pkg | 10 |
Certifications: | |
UL File Number: | |
E310661 |
