Orbit F812M58SM Cond.to Flg.clip,side Mnt.1/2" - 3/4"Emt,5/16" - 1/2"Flg.snp.cls - Sonic Electric

Orbit F812M58SM Cond.to Flg.clip,side Mnt.1/2"-3/4"Emt,5/16"-1/2"Flg.snp.cls

$1.43

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

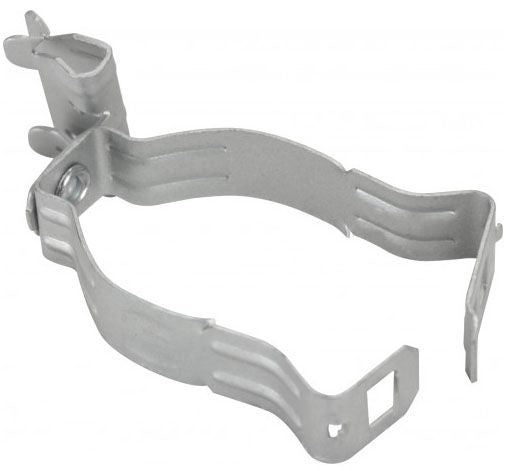

Orbit Industries™ side mount snap close conduit to flange clips can be easily and fast installed to beam flanges from 1/8� to 3/4� with only a hammer. The clips support EMT and rigid conduits from the side of beams and snap conduits easily. The rotatable joint allows the snap-close conduit clip to rotate 360° to fit conduits in different directions.

Features:
- Spring Steel
- Available for EMT, rigid and aluminum conduit
- Snap close clip can pivot through 360°
- Only hammer needed for installation

Certifications:
ul certification

UL File Number:
E328572

CAT NO UPC FLANGE THICKNESS EMT/RIGID SIZE FMC SIZE MC/AC SIZE STATIC LOAD STD PKG
F6M24SM 8-35243-02591-2 1/8� - 1/4� - 3/8� 14-2 TO 12-3  25 LB 100
F6M58SM 8-35243-02592-9 5/16� - 1/2� - 3/8� 14-2 TO 12-3  25 LB 100
F6M912SM 8-35243-02593-6 9/16� - 3/4� - 3/8� 14-2 TO 12-3  25 LB 100
F812M24SM 8-35243-02475-5 1/8� - 1/4� 1/2�, 3/4� - - 25 LB 100
F812M58SM 8-35243-02476-2 5/16� - 1/2� 1/2�, 3/4� - - 25 LB 100
F812M912SM 8-35243-02594-3 9/16� - 3/4� 1/2�, 3/4� - - 25 LB 100
F16M24SM 8-35243-02595-0 1/8� - 1/4� 1� - - 25 LB 100
F16M58SM 8-35243-02596-7 5/16� - 1/2� 1� - - 25 LB 100
F16M912SM 8-35243-02597-4 9/16� - 3/4� 1� - - 25 LB 100
F20M24SM 8-35243-02598-1 1/8� - 1/4� 1 1/4" - - 25 LB 100
F20M58SM 8-35243-02599-8 5/16� - 1/2� 1 1/4" - - 25 LB 100
F20M912SM 8-35243-02600-1 9/16� - 3/4� 1 1/4" - - 25 LB 100
F24M24SM 8-35243-02601-8 1/8� - 1/4� 1 1/2" - - 25 LB 50
F24M58SM 8-35243-02602-5 5/16� - 1/2� 1 1/2" - - 25 LB 50
F24M912SM 8-35243-02603-2 9/16� - 3/4� 1 1/2" - - 25 LB 50
F32M24SM 8-35243-02604-9 1/8� - 1/4� 2" - - 25 LB 50
F32M58SM 8-35243-02605-6 5/16� - 1/2� 2" - - 25 LB 50
F32M912SM 8-35243-02606-3 9/16� - 3/4� 2" - - 25 LB 50

Download PDF File
