Orbit F812M58 Cond.to Flg.clip,bot.mnt. 1/2"-3/4"Emt,5/16"-1/2"Flg.snp.cls

$1.73

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Excellent Support

Get expert help via chat, email or phone.

Product Details

Description

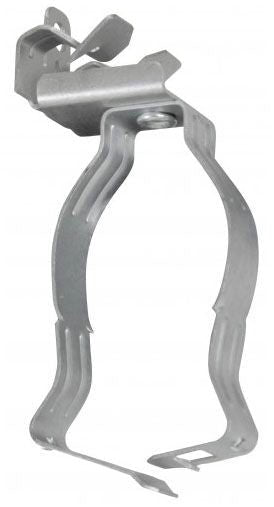

Orbit Industries™ bottom mount snap close conduit to flange clips can be easily and quickly installed to beam flanges from 1/8� to 3/4� using only a hammer. The clips support EMT and rigid conduit from the bottom of beams and snap conduit easily. The rotatable joint allows the snap-close conduit clip to rotate 360° to fit conduit in different directions.

Features:
- Spring Steel
- Support conduit/pipes or cables from beam flanges
- Snap close clip can pivot through 360°
- Only hammer needed for installation

Certifications:
ul certification

UL File Number:
E328572

CAT NO UPC FLANGE THICKNESS EMT/RIGID SIZE FMC SIZE MC/AC SIZE STATIC LOAD STD PKG
F6M24 8-35243-02576-9 1/8� - 1/4� - 3/8" 14-2 TO 12-3 75 lbs 100
F6M58 8-35243-02577-6 5/16� - 1/2� - 3/8" 14-2 TO 12-3 75 lbs 100
F6M912 8-35243-02578-3 9/16� - 3/4� - 3/8" 14-2 TO 12-3 75 lbs 100
F812M24 8-35243-02472-4 1/8� - 1/4� 1/2�, 3/4� - - 75 lbs 100
F812M58 8-35243-02473-1 5/16� - 1/2� 1/2�, 3/4� - - 75 lbs 100
F812M912 8-35243-02474-8 9/16� - 3/4� 1/2�, 3/4� - - 75 lbs 50
F16M24 8-35243-02579-0 1/8� - 1/4� 1" - - 75 lbs 100
F16M58 8-35243-02580-6 5/16� - 1/2� 1" - - 75 lbs 100
F16M912 8-35243-02581-3 9/16� - 3/4� 1" - - 75 lbs 50
F20M24 8-35243-02582-0 1/8� - 1/4� 1 1/4"  - -  75 lbs  50
F20M58 8-35243-02583-7 5/16� - 1/2� 1 1/4"  - -  75 lbs 50
F20M912 8-35243-02584-4 9/16� - 3/4� 1 1/4" - - 75 lbs  50
F24M24 8-35243-02585-1 1/8� - 1/4� 1 1/2" - - 75 lbs  50
F24M58 8-35243-02586-8 5/16� - 1/2� 1 1/2"  - - 75 lbs  50
F24M912 8-35243-02587-5 9/16� - 3/4� 1 1/2"  - - 75 lbs  50
F32M24 8-35243-02588-2 1/8� - 1/4� 2"  - -  75 lbs  50
F32M58 8-35243-02589-9 5/16� - 1/2� 2"  - - 75 lbs  50
F32M912 8-35243-02590-5 9/16� - 3/4� 2"  - - 75 lbs  50
