Description
Category | FASTENER |
Page | F4 |
Barcode | 8-35243-02479-3 |
Features: | |

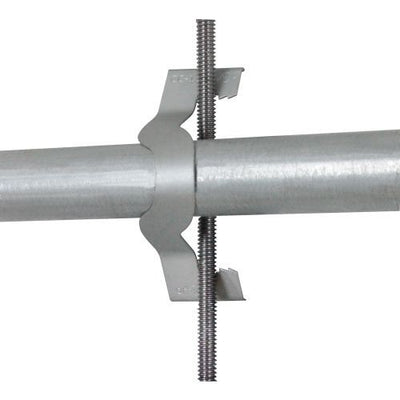

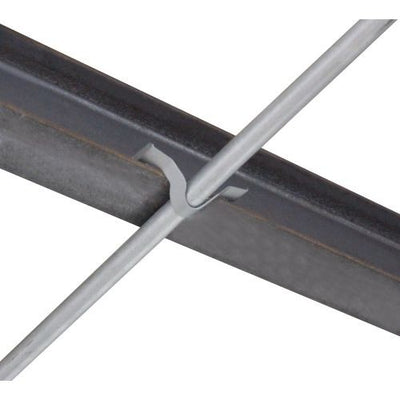

- Spring Steel - Supports conduits to rods, wire or flanges - Can be used for flexible metallic tubing, armored cables, portable cables, control tubes and communication cables - Available for EMT, rigid, ENT and aluminum conduits - No tools needed for installation |
|
Specifications: | |
EMT Conduit Size | 1/2”, 3/4” |
Rigid Conduit Size | 1/2”, 3/4” |
Load Capacity: | |
Vertical Wire or Rod | 50 lb |
Horizontal Flange | 100 lb |
Vertical Flange | 15 lb |
Packaging Info: | |
Std Pkg | 100 |
Master Ctn | 1000 |
Certifications: | |
UL File Number: | |
E328572 | |
CONDUIT SIZE | #10, #12 WIRE | #8, #9 WIRE | 3/16”, 1/4” ROD | 1/8” - 1/4” FLANGE | 5/16” - 3/8” FLANGE | 7/16” - 1/2” FLANGE |
1/2” EMT | CC-8 | CC-8 | CC-8 | CC-8 | CC-12 | CC-12 |
1/2” RIGID | CC-8 | CC-12 | CC-12 | CC-12 | CC-12 | CC-16 |
3/4” EMT | CC-12 | CC-12 | CC-12 | CC-12 | CC-16 | CC-16 |
3/4” RIGID | CC-12 | CC-12 | CC-16 | CC-16 | CC-20 | CC-20 |
1” EMT | - | CC-16 | CC-16 | CC-16 | CC-20 | CC-20 |
1” RIGID | - | - | - | CC-20 | CC-20 | CC-20 |
1 1/4” EMT | - | CC-20 | CC-20 | CC-20 | - | - |
