Orbit Box Mount Conduit / Cable Support (50 Pack)


Style: BMCS
Price:
Sale price$65.10

Shipping calculated at checkout

Stock:
In stock

Description

Description:

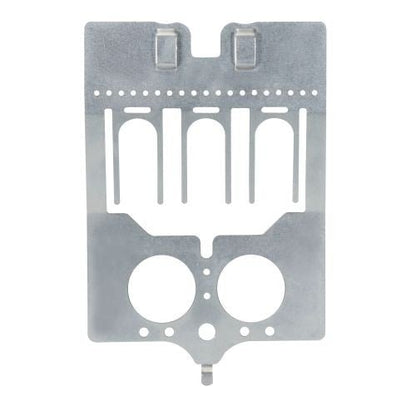

Orbit Industries„¢ Box Mounted Conduit / Cable Supports, BMCS and BMCS-CJ6, secure raceway within 6" of the attached box, satisfying NEC 330.30 (B) without the need for extra bar hangers. BMCS series fits 4", 4-11/16" and even 5" outlet boxes of any depth. Unlike many cable managers, the BMCS series attaches directly to a junction box with a single Tek screw. This allows the BMCS series to travel with the box when moved. Open knockouts allow for terminations through the bottom of the attached box. BMCS series features multiple cable management options, including three built-in cable support forks; horizontal pinholes for fastening tie wire or one-hole straps; and top slots for attaching Orbit CS-CJ6 snap-close cable supports (BMCS-CJ6 comes with pre-assembled CS-CJ6).

Ideal for use with Orbit's Simple Support Bracket Family

Features:
- Quickly attaches to any 4", 4-11/16" or 5" Square Box
 Easy installation behind box
- Eliminates the need for an additional bar hanger for cable support
- Built-in support forks
 Horizontal pinholes for straps, tie wire or fasteners
 BMCS-CJ6 is pre-assembled with CS-CJ6 for supporting up to 4 MC / 6 NM cables

Certifications:
UL  steel products rohs certification

Literature


Catalog
Number

UPC

Description

Std.
Pkg.

BMCS 8-35243-02877-7 Box Mount Conduit/Cable Support 50
BMCS-CJ6 8-35243-02878-4 Box Mount Conduit/Cable Support with Stud Mounting Cable Support 50

Download PDF File

Specification
