Description
Category | PREFAB |
Page | F25 |
Description: | |

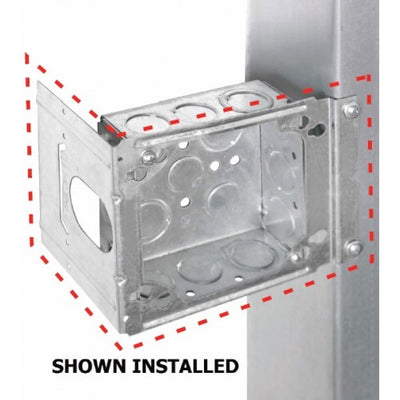

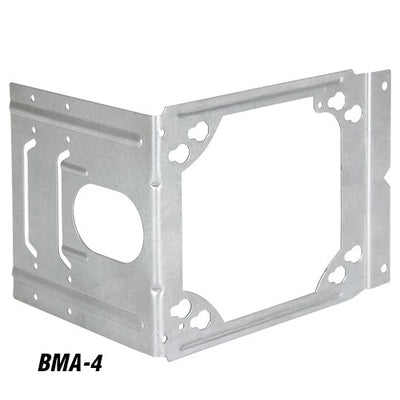

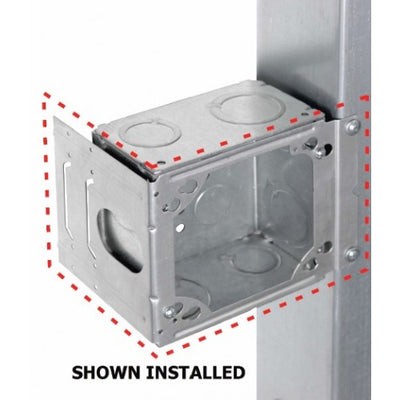

Orbit Industries’ Box Mounting Adapter mounts 4” or 4-11/16” square boxes directly-to-studs. The bracket features Far Side Support for up to 4" deep studs, eliminating most of the box movement. Mounting holes allow for the use of a 4" ring, removing the need for an electrical box on low voltage applications. | |
Features: | |
- BMA-4 mounts 4" & 4-11/16" Sq. boxes directly-to-stud - BMA-4's mounting holes allow for the installation of a 4" ring for low voltage applications with #8-32 screws - BMA-4's adjustable Back Support helps maintain rigidity once installed - BMA-4's low profile design limits drywall bulging - For use with metal or wood studs - For tool-less far-side support up to 6”, see BMA-26 |
|
Specifications: | |
Material | Sheet Steel |
Color | Galvanized |
Mfg. Process | Stamped |
Certifications: | |
UL File Number: | |
E310661* | |
*BMA-23 has been replaced by BMA-26
Catalog
|
UPC |
Description |
Std.
|
BMA-4* | 8-35243-00684-3 | BOX MOUNT ADAPTER WITH 2-1/2",3-1/2" & 4" FAR SIDE SUPPORT | 25 |

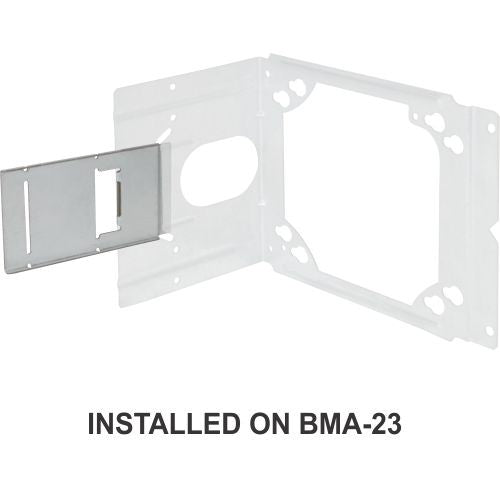

FS-456-EXT | 8-35243-02879-1 | FAR SIDE SUPPORT EXTENSION FOR 4" 5-1/2" 6" | 50 |
