Description
Category | FASTENER |
Page | F29 |
Description: | |

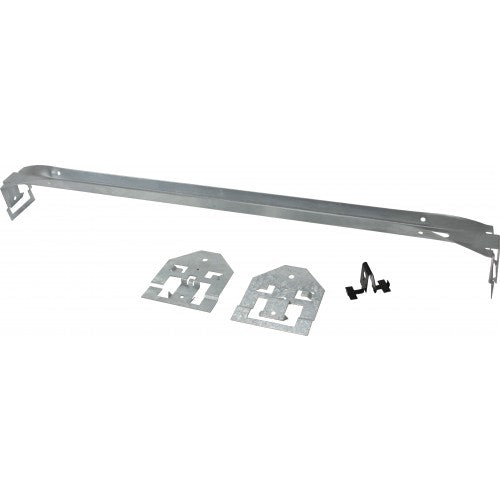

Orbit Industries’ Heavy Duty T-Grid Box Hangers are a fast and easy way to support electrical boxes in drop ceilings. The BHT-1H Series requires no tools to install, and accommodates multiple junction boxes with bottom knockouts. Standard hangers are suitable for 2-1/8” and 1-1/2” deep boxes. BHT-1HDEEP includes extension brackets to accommodate 2-1/8” deep boxes with 1-1/2” extensions. BHT-1H Series includes a box mounting clip which can provide independent support from the mounting clip or hanger. | |
Features: | |
- Pre-galvanized steel hanger and extension brackets - Includes spring steel box mounting clip - For 2-1/8” and 1-1/2” deep boxes with bottom KOs - No tools needed for installation - Accommodates multiple junction boxes - Mounts flush with face of tile |
|
CAT NO | UPC | INCLUDED COMPONENTS | LENGTH | BOX DEPTH | STATIC LOAD | STD PKG |
BHT-1HD | 8-35243-02628-5 | Mounting Clip | 24" | 1 1/2", 2 1/8" |
50 lbs | 25 |
BHT-1HDEEP | 8-35243-02629-2 | Mounting Clip, 1 1/2" Extension Bracket |
24" |
1 1/2", 2 1/8", 3 5/8" |
50 lbs | 25 |
