Orbit BCHS-6S Box & Conduit Hanger Support Up to 8x8 Box,take 1-hole Strap

$16.65
Choose Pack
Choose Pack: 1 Pack

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

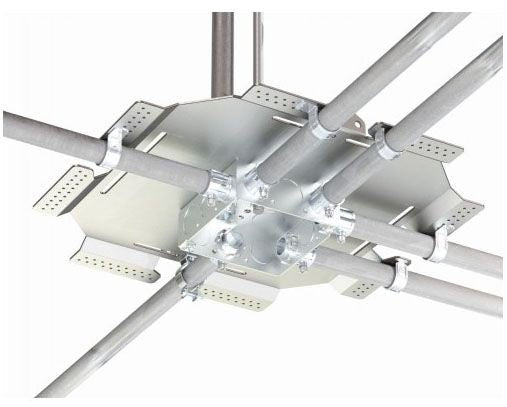

Orbit™s Made-in-USA Box and Conduit Hanger Support plate mounts up to 8� x 8� junction boxes or multiple smaller boxes “ both vertically and overhead. A single BCHS-8S can support several boxes and incoming conduit“ suspended from just ONE threaded rod! The BCHS-8S features offsets for using one-hole straps, stamped markings for box placement, and several pin holes and slots for attaching two-hole straps and pipe hangers. UL Listed.

Features:
- Support suspended boxes and multiple conduit installations with one piece of all-thread
- Plate offset provides cable/conduit support via one-hole straps to any knockout (KO) on installed junction boxes
- Pin holes and slots allow for use of conduit straps
- Stamped markings provide guidelines for box placement. Boxes can be placed in any location on plate
- Easy to preassemble to save time and material
- ETL Rated: Support of 100lbs (45.36kg) or less
- No cutting required
- Self-reinforcing as more conduits are added
- Made in USA, BABA Compliant
- Patented

Specifications:
Width 13.3"
Height 13.3"
Offset 3/8"
Material 16 GA Sheet Steel
Color Galvanized

Packaging Info:
Std Pkg 10
Weight 23.3 lbs.

Download PDF File

Specification
