Orbit Industries, Inc. | Product Number: B-T5B

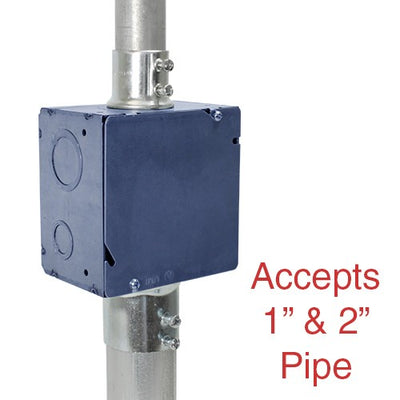

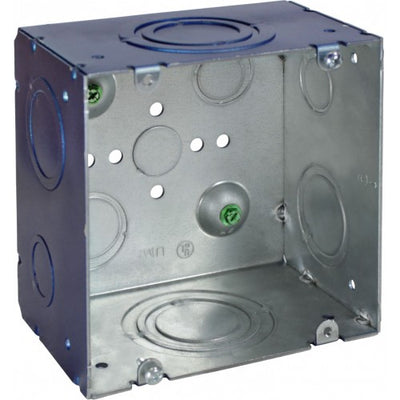

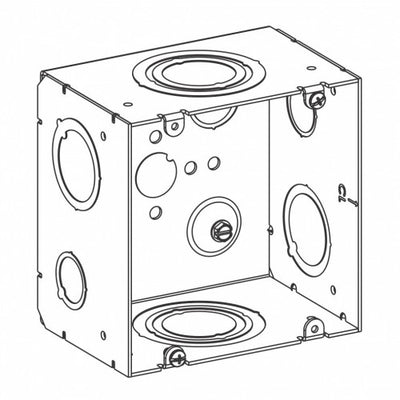

Orbit B-T5B True 5" Square Box - Blue
Pickup available at Sonic Distribution Center
Usually ready in 24 hoursPairs well with
30-day returns Read terms & conditions
Top rated store Read 5-star reviews
Orders ship within 2 business days
Safe & secure checkout
Product details
Description
| Category | SWITCH BOX |
| Page | P28 |
| Barcode | 8-35243-02222-5 |
| Description: | |
| Orbit Industries' selection of 5‚½ Square Boxes and Accessories provides the capacity needed to handle modern-day hospital, commercial, government, university and other data installations. Up to 71.8 cubic inches of capacity allow for an easier installation of high-speed cable, resulting in reduced labor costs and cable stress. | |
| Features: | |

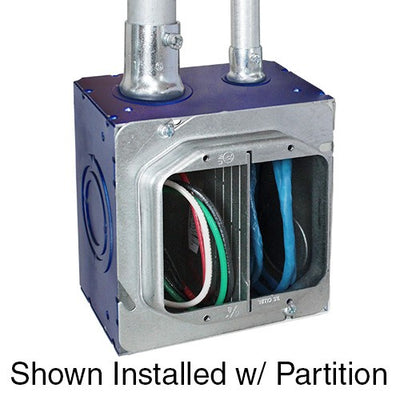

| - In blue for data applications - More than double the capacity of standard 4‚½ square boxes - Increased capacity easily meets minimum bend radius requirements for an easier installation - Extra space in the box reduces the chance of short circuits and ground faults due to cramped spaces and cable stress - Can store the BICSI-recommended slack cable loop, allowing for easy access and cable termination by a single technician - Supports all current copper CAT and fiber optic cables in addition to predicted cable size increases - Compatible with Orbit's Fixed Mounting Brackets (FMB) and Flat Bracket Family for between stud applications - Suitable brackets allow the T5B to use a 4" ring, reducing material costs - Cover, Reducer and Partitions available here |
|
| Dimensions: | |
| Width | 5" |
| Height | 5" |
| Depth | 3-1/4" |
| Cu In | 71.8 |
| Specifications: | |
| Material | 16 GA Sheet Steel |
| Mfg. Process | Welded |
| KO Sides | (2) 1" to 2" C.K.O.'s, (2) 1" & 1-1/4" M.K.O.'s, (2) 1/2" & 3/4" M.K.O.'s |
| KO Bottom | (1) 1/2" & 3/4" M.K.O.'s, (1) 3/4" & 1" M.K.O.'s (1) 1/2" K.O.'s, (2) Ground Screws |
| Packaging Info: | |
| Std Pkg | 12 |
| Certifications: | |
 |
|
