Description
Category | LED | |
Page | H9 | |
Description: | ||

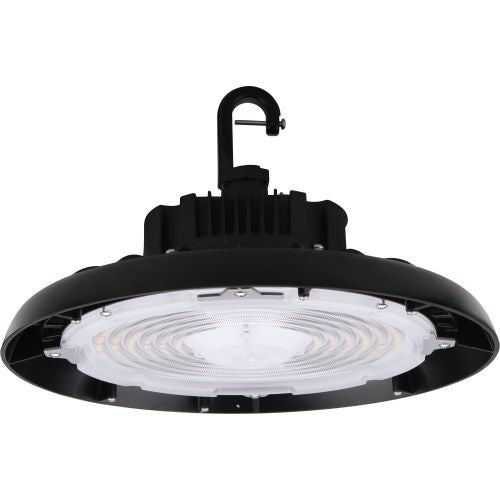

The Round "UFO" LED High Bay Light Fixtures are perfect for indoor locations with high ceilings, such as open factory floors, transit stations, big box stores, and exhibition halls. All models have ADJUSTABLE COLOR TEMPERATURE (CCT) and ADJUSTABLE WATTAGE settings. Ranges from 100W (13,451 lumens) up to 240W (32,365 lumens). Set CCT levels to either 3500K, 4000K, or 5000K. Additionally, all models are compatible with a motion sensor (sold separately). They are UL and DLC Premium Listed. | ||
Specifications: |
|
|
Voltage: | 120~277V | |
Power Factor: | > 0.9 | |
Housing: | Die Cast Aluminum | |
Cord Length: | 6 FT | |
Finish: | Black Powder Coat Finish | |
Lens Material: | High Light Transmittance Polycarbonate Lens | |
Ambient Operating Temp: | -40°C / -40°F (w/o sensor) -30°C / -22°F (w sensor) to 50°C / 122°F |
|
Mount: | 1/2“ heavy-duty Fixture Hook Included; Trunnion (Sold Separately) |
|
UL listed for Wet Location | E335594 | |
Life Hours: | 50,000 | |
Warranty: | 5 Year Limited Warranty | |
Beam Angle: | 90° | |
Motion Sensor: | DMS1 (Order Separately) | |
Remote Control: | DMS1-RC (Order Separately) | |
Dimmable: | 0-10V Dimmable | |
Surge Protection: | L/N-PE: 6KV, L-N: 6KV | |
Dimensions | ||
AWC-LUHB5-150W: (A) 11” x (B) 6-1/2” | ||
AWC-LUHB5-240W: (A) 13-3/8” x (B) 6-1/2” | ||
Certifications | ||
Catalog
|
DLC Product ID |
Efficacy |
Wattage Range |
Lumens Range |
Wattage Equivalent |
Color
|
CRI |
|
AWC-LUHB5-150W | S-WL2XOC | 135 lm/W | 100W |
13451 | 400W MH | 3500K/ 4000K/ 5000K |
80+ | |
120W | 16141 | 400W MH | ||||||
150W | 20176 | 750W MH | ||||||
AWC-LUHB5-240W | S-GPFUJQ | 135 lm/W | 180W |
24274 | 750W MH | 3500K/ 4000K/ 5000K |
80+ | |
200W | 26971 | 750W MH | ||||||
240W | 32365 | 1000W MH |
