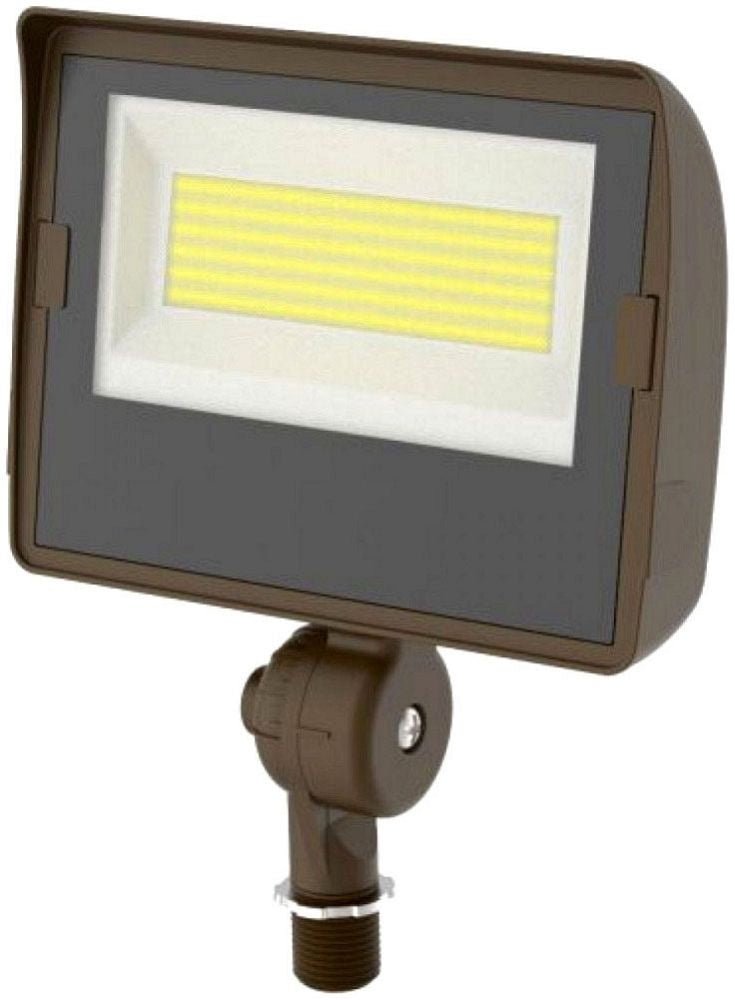

Orbit AWC - LFL11 - 60W - P - KN LFL11 LED Light Adj. Watt/cct 40w~60w W/pc 120~277v Kn Br - Sonic Electric

Orbit AWC-LFL11-100W-P-YK LFL11 LED Light Adj. Watt/cct 50w~100w W/pc 120~277v Yk Br

$142.96
Choose Pack
Choose Pack: 1 Pack

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description
The Slim LED Flood and Area Light Fixture offers ADJUSTABLE COLOR TEMPERATURE (CCT) and ADJUSTABLE WATTAGE on all models. Ideal for outdoor applications such as exterior building lighting, sign lighting, and loading docks. CCT and Wattage outputs are tuned via built-in switch outside the fixture. Available from 10W to 100W “ with outputs ranging from 1,252 to 13,257 lumens. Set CCT levels to either 3000K, 4000K, or 5000K. 30W/60W/100W fixtures come with pre-installed knuckle mount (30W/60W/100W) or yoke mount (100W). Day-night Photocell with ON/OFF switch included standard. UL Listed for Wet Locations. DLC Premium Listed

Specifications:

AWC-LFL11-30W/60W/100W-KN:

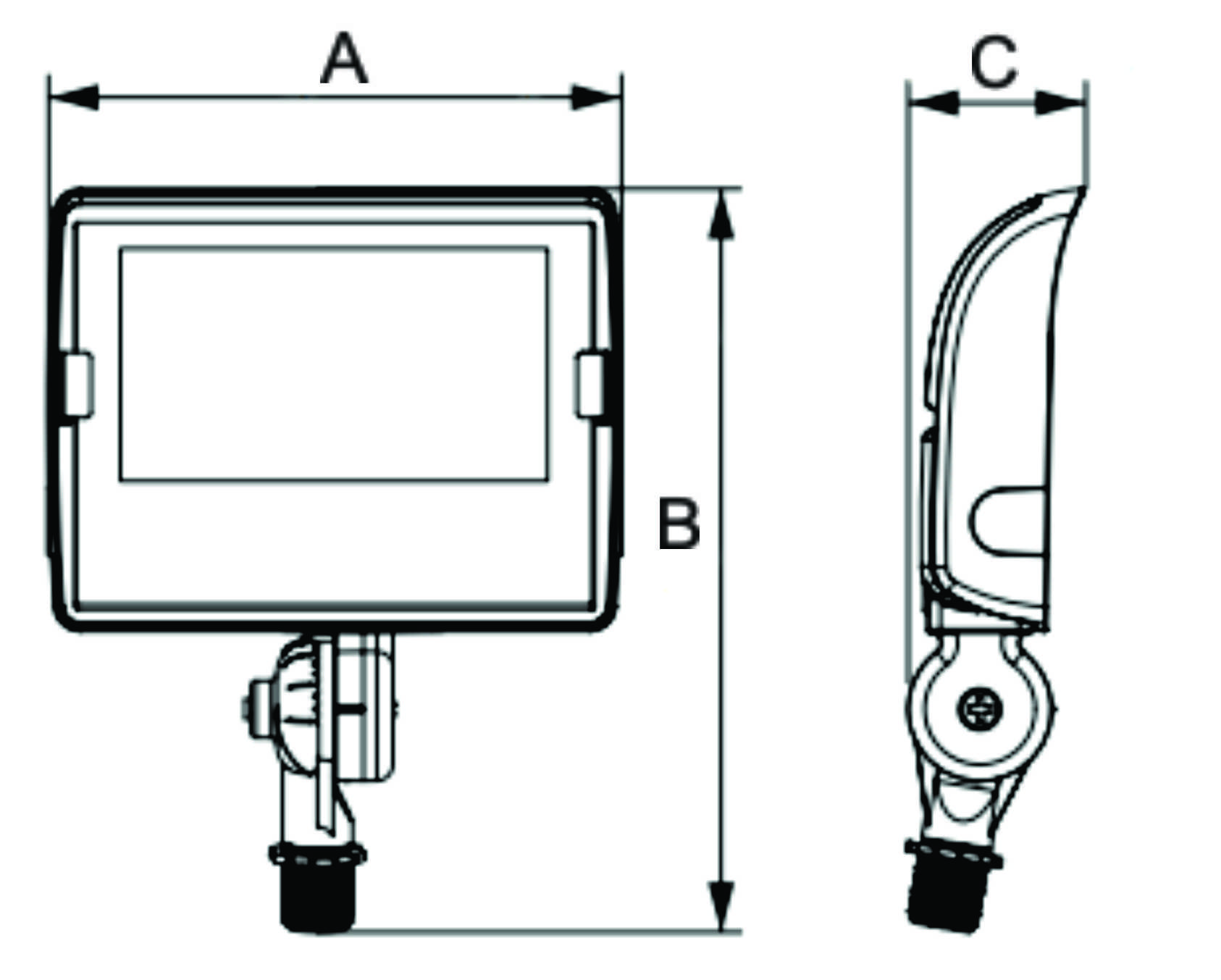

AWC-LFL11-30W-KN Line Drawing

AWC-LFL11-100W-YK:

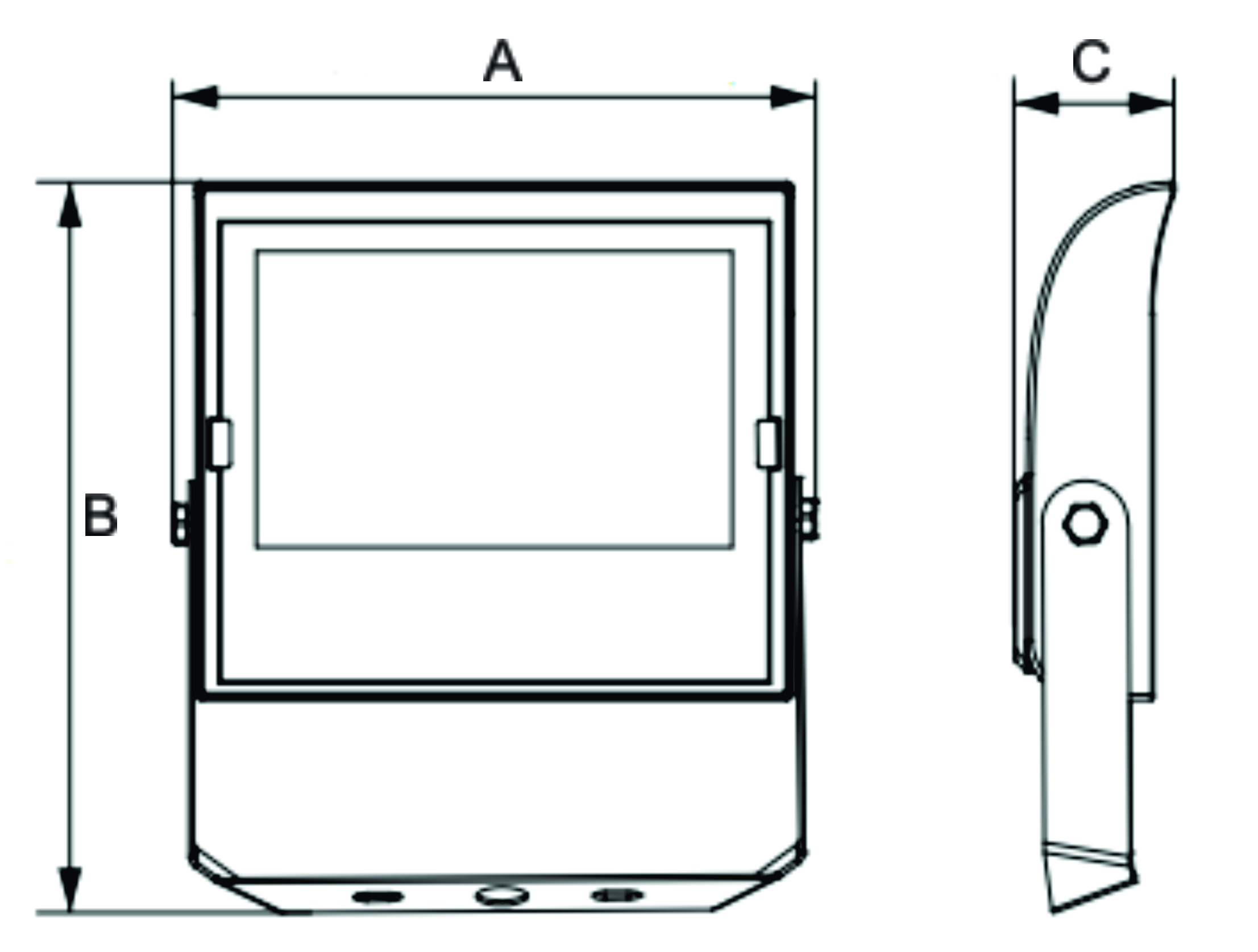

AWC-LFL11-100W-YK Line Drawing
Voltage: 120~277V
Power Factor: > 0.9
NEMA Type: 7H x 7V Beam Spread
Housing: ADC12 Die Cast Aluminum
Finish: UV Resistant Bronze Powder Coat Finish
Lens Material: High Light Transmittance Tempered Glass Lens with Weatherproof Gasket
Ambient Operating Temp: -40°C / -40°F to 40°C / 104°F
Mount: KN: Knuckle Mount
YK: Yoke Mount
UL listed for Wet Location E335594
Life Hours: 50,000
Warranty: 5 Year Limited Warranty
Beam Angle: 104° x 103° (30W)
105° x 100° (60W)
107° x 102° (100W)
Photocell: Built-In With ON/OFF Switch
Dimmable: 0-10V/PWM/VR
Surge Protection: 2KV - 30W/60W
6KV - 100W

Dimensions
AWC-LFL11-30W-P-KN: (A) 6-7/8" x (B) 8-15/16" x (C) 2-1/8"
AWC-LFL11-60W-P-KN: (A) 8-11/16" x (B) 10-1/16" x (C) 2-1/4"
AWC-LFL11-100W-P-KN: (A) 9-7/8" x (B) 12-1/4" x (C) 2-5/8"
AWC-LFL11-100W-P-YK: (A) 10-5/8" x (B) 12-1/16" x (C) 2-5/8"



Catalog
Number

DLC
Product ID

Efficacy

Wattage Range

Lumens Range

Wattage Equivalent

CCT Range

BUG Rating

CRI
AWC-LFL11-30W-P-KN

S-9S5VPT

 125 lm/W 10W 1252 50W MH 3000K/
4000K/
5000K		 B2-U0-G0 70+
20W 2505  70W MH
30W 3757 100W MH
AWC-LFL11-60W-P-KN S-U0F6TQ  123 lm/W 40W 4953 150W MH B3-U0-G1
50W 6191 175W MH
60W 7429 175W MH
AWC-LFL11-100W-P-KN S-GERAHQ 133 lm/W  50W 6629 175W MH B3-U0-G1
80W  10606 250W MH
100W  13257 400W MH
AWC-LFL11-100W-P-YK S-GERAHQ 133 lm/W  50W 6629 175W MH B3-U0-G1
 80W 10606 250W MH
100W  13257 400W MH
