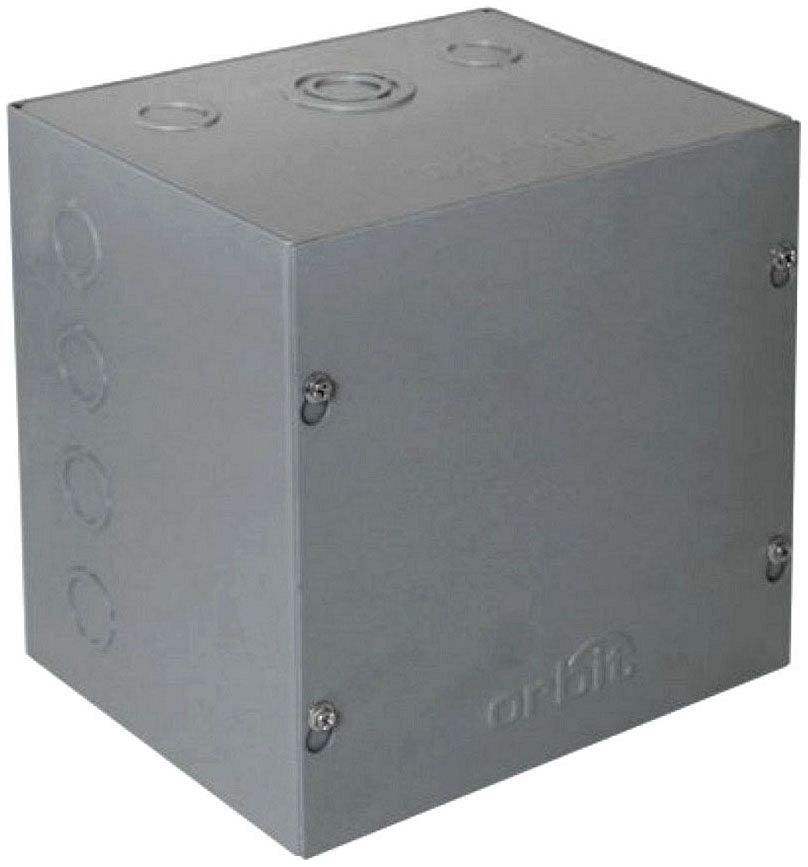

Orbit 886-CKO Nema Type 1 Enclosure 8x8x6, Cko, 1/2" to 1-1/4" Cko

$27.56
Choose Pack
Choose Pack: 1 Pack

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description
Orbit™s 886-CKO is a Specialty NEMA Type 1 enclosure ideal for Lighting Control Relay Systems or as a Home Run pull-box. Specialty K.O. pattern eliminates the need to manually punch knockouts in standard NEMA 1 enclosure.

Features:
- ANSI 61 Gray Polyester Powder Paint Finish Inside and Out
- 16 Gauge Steel or Plated Steel
- Mounting Holes on back of box
- 1" distance from back of box to bottom of K.O. allows for easy conduit securement with Conduit Hanger
- Concentric K.O. on top of box
- Ideal for Lighting Control Relay Systems and/or Home Runs
- Provision for Ground Bar Installation

*For larger capacity lighting control box, see 12124-50 or 12124-750.

Dimensions:
Width 8"
Height 8"
Depth 6"

Specifications:
Material Gauge or Plated Steel
Color Gray

Left & Right Side K.O. (4) - 1/2" & 3/4" CKOs per side
Top & Bottom Side K.O. (2) - 1/2" & 3/4" CKOs, (1) - 1/2" to 1-1/4" CKO per side
Back Side K.O. (1) - 1" & 1-1/4" CKO

Packaging Info:
Std Pkg 4
Weight 26.17 lbs
