Orbit 4SDB-AMC-PT With Angled MC Clamps featured with screws angled up/down

Orbit Industries, Inc.SKU: 4SDB-AMC-PT

Options: 24-pack
Price:
Sale price$107.10

Shipping calculated at checkout

Stock:
In stock

Description

Description:

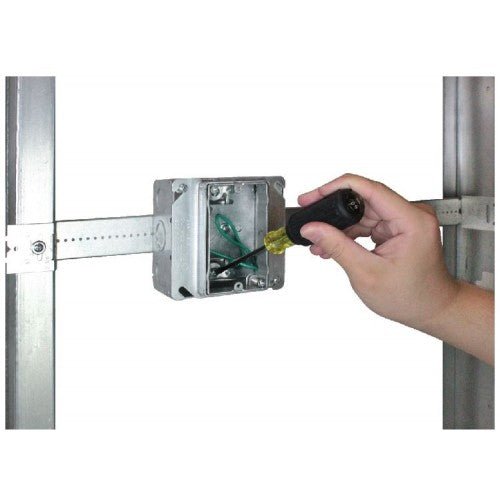

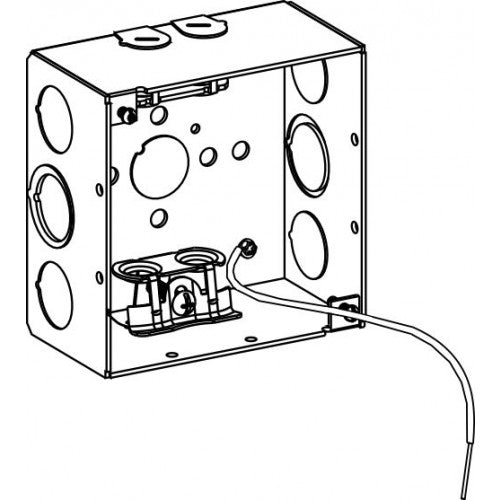

Orbit's 4" Square Box with Angled MC Clamps featured with screws angled up/down allowing the installer to seamlessly access the screw with a mud ring pre-installed on the box. In addition, the ground screw has been moved to avoid interference with back-mounted brackets such as Orbit's BHA-16 & BHA-24.

Features:

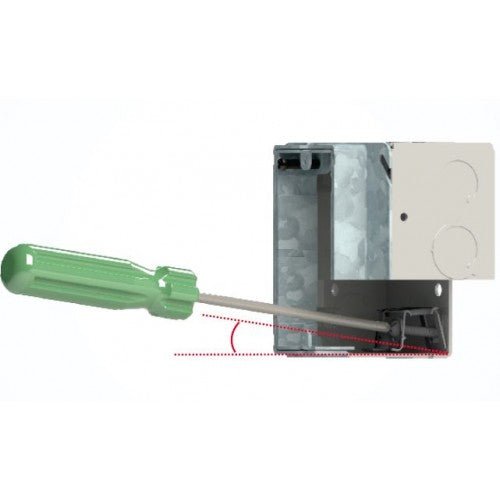

- Angled MC Clamp for Metal Clad Cables, provides the accessibility even when the ring is installed
 Includes 10" Solid Cu. #12AWG Pigtail and 10-32 Ground Screw

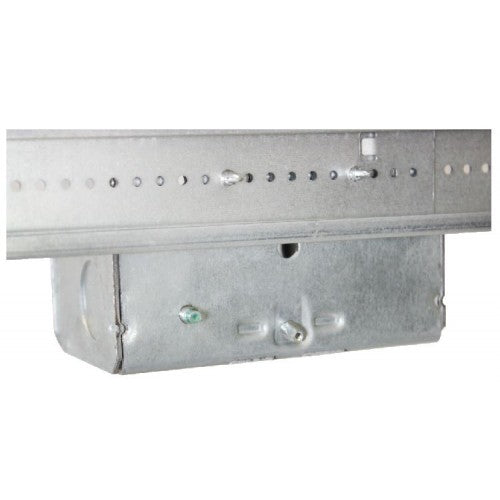

 Designated ground screw position provides the compatibility with bar hanger brackets (BHA-16 & BHA-24)

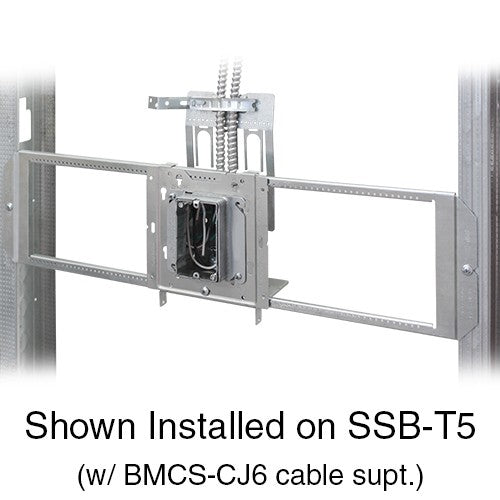

 Compatible with Orbit's Drop-On-Bar Slider Bracket and Simple Support BracketSeries
 Order preassembled as LVBS-A4-CS6 - includes box, adapter, and built-in First Means of Support
 For Fixture/Luminaire Support of 50 lbs or less

Dimensions:
Width 4"
Height 4"
Depth 2 - 1/8"
Cu In 30.3

Specifications:
Material 16 GA Sheet Steel
Mfg. Process Welded
Color Galvanized
Clamp Type BX/MC
KO Sides (4) - 1/2", (2) - MKO, (4) - Loom
KO Bottom (1) - 1/2"

Packaging Info:
Std Pkg 24
Weight 24.5 lbs

Certifications
steel products ul certification  steel products rohs certification

Download PDF File

Specification
