Description
Description: | |

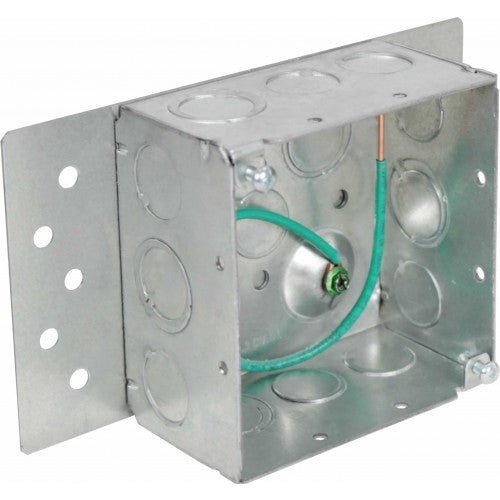

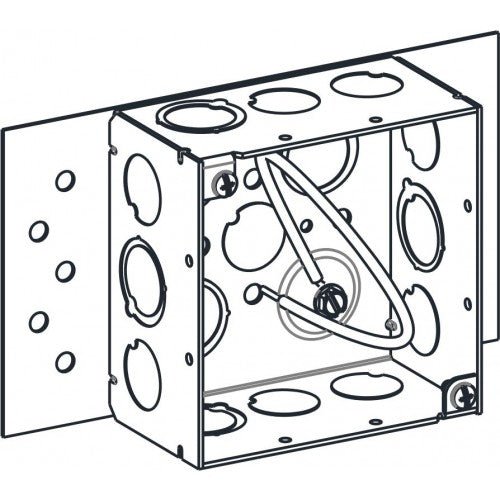

Orbit's Surface Mounting Box (4SDB-BP) provides a solution for surface mounting pre-wired boxes. Featuring a flat back plate with screw holes, this 4" square box can be mounted to most surfaces without having to access the inside of the box itself! | |
Features: | |

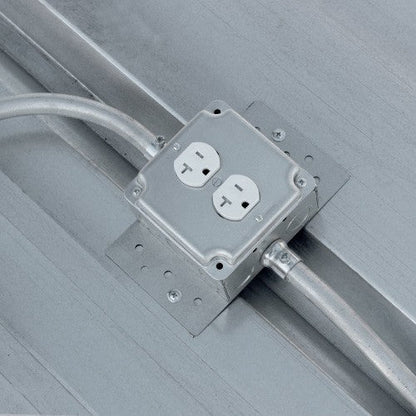

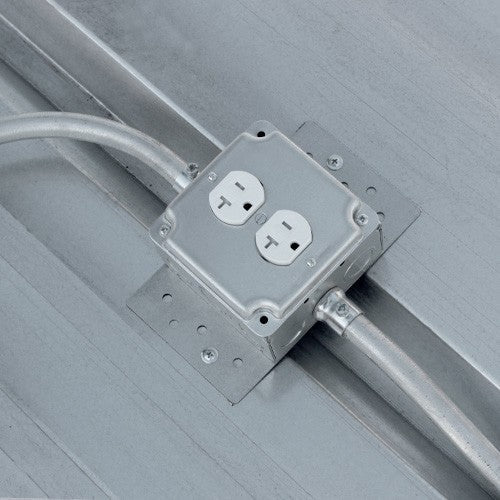

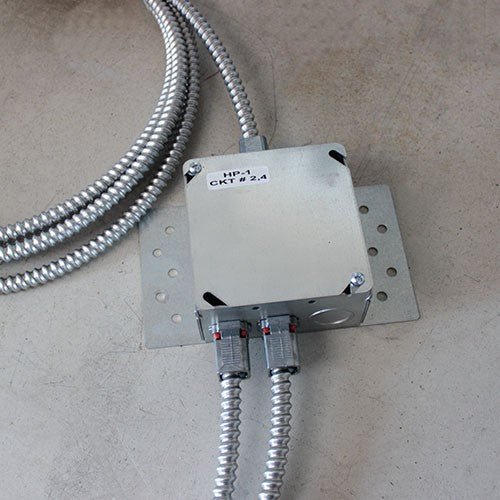

- Raised Ground Emboss - Includes 10" Solid Cu. #12AWG Pigtail and 10-32 Ground Screw Back Mounting Plate allows for the pre-wiring of the box with device and cover before shipping to the field - Can be mounted to ceilings, walls, corrugated surfaces or underneath counters For Fixture/Luminaire Support of 50 lbs or less |
|
Dimensions: | |
Width | 6.93" |
Height | 4" |
Depth | 2-1/8" |
Cu In | 30.3 |
Specifications: | |
Material | 16 GA Sheet Steel |
Mfg. Process | Welded |
Color | Galvanized |
KO Sides | (8) - 1/2", (4) - MKO |
KO Bottom | (2) - 1/2", (2) - MKO |
Packaging Info: | |
Std Pkg | 24 |
Weight | 24.5 lbs |
Certifications: | |
UL File Number: |
