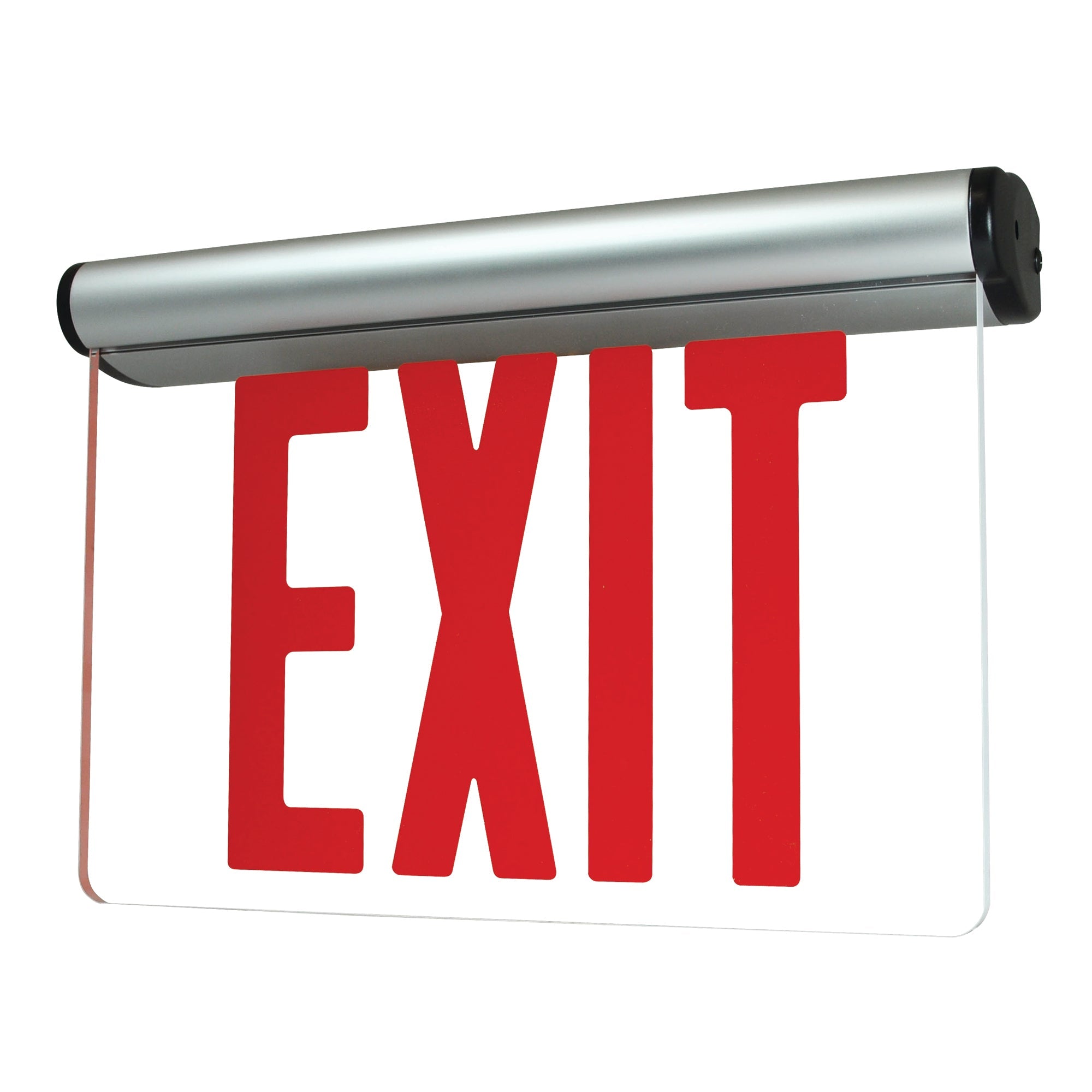

Nora Lighting NX-822-LEDR2MA RED LED 2F MIR AL EDGE-LIT EXT

Details of the Nora Lighting NX-822-LEDR2MA RED LED 2F MIR AL EDGE-LIT EXT

Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.

Mounting
Mounting hardware consist of 0.06 steel universal junction box bracket, 7/8³ profile 0.11 die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected.

ELECTRICAL
Voltage
Input: Dual 120V/277V (0.038A / 0.017A)
Wattage: 3 Watts normal / 5 Watts emergency operation
Light Source: Long life LED sources
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level. 5 year warranty on materials
and worksmanship.

Specification

• Brand: Nora Lighting
• SKU: NX-822-LEDR2MA
• UPC: 732180705467
• Product Line: 5010
• Product Family: EXIT
• Product Type: Exit / Emergency
• Wattage: 3W

Downloads
