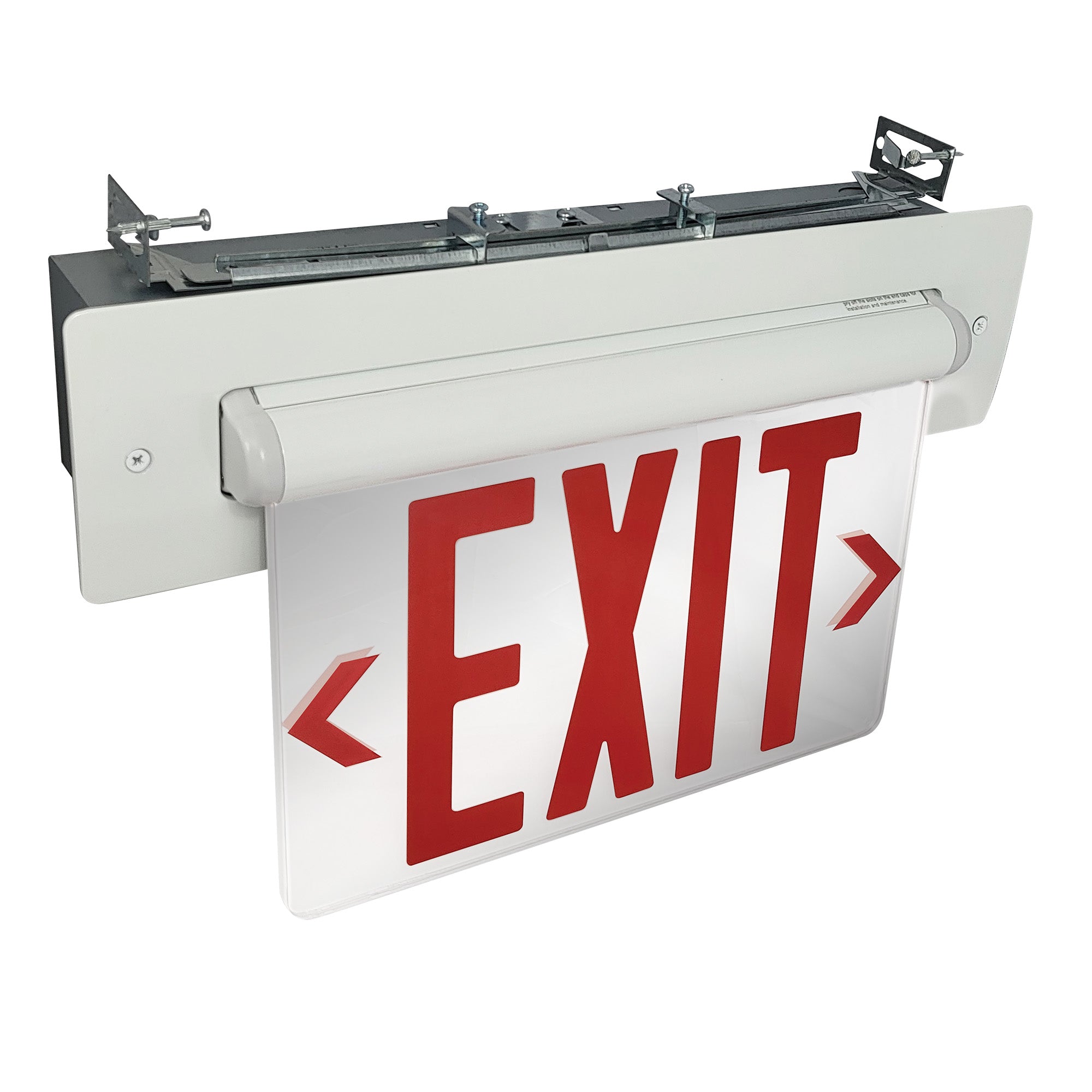

Details of the Nora Lighting NX-815-LEDRMW Recessed Adjustable LED Edge-Lit Exit Sign, Battery Backup, 6" Red Letters, Single Face, Mirrored Acrylic - White Housing

The Nora Lighting NX-815-LEDRMW Recessed Adjustable LED Edge-Lit Exit Sign is a premium architectural emergency egress solution designed for commercial, institutional, and high-end interior applications. Featuring a sleek recessed design with a mirrored acrylic face and white housing, this LED exit sign provides a clean, sophisticated appearance while ensuring reliable exit identification and code-compliant emergency illumination. Ideal for office buildings, hotels, museums, galleries, healthcare facilities, schools, and retail environments, it seamlessly blends into modern architectural spaces.

Engineered with energy-efficient LED technology, the NX-815-LEDRMW delivers bright, highly visible 6-inch red EXIT lettering embedded within a mirrored acrylic panel. The adjustable face can be positioned from 0° to 90°, allowing installation on ceilings, walls, or sloped surfaces while maintaining optimal visibility. The recessed galvanized steel housing conceals wiring and electrical components, creating a refined, low-profile appearance.

For enhanced safety during power outages, this model includes a replaceable Ni-Cad battery backup system that provides a minimum of 90 minutes of emergency operation. Dual-voltage 120/277V input compatibility, integrated test button, charge indicator, and advanced surge and short-circuit protection ensure dependable performance in demanding commercial environments. Designed to meet UL, NEC, NFPA, and California Title 20 requirements, this exit sign delivers long-term reliability and code compliance.

Key Features

• Recessed adjustable LED edge-lit exit sign
• Single-face mirrored acrylic panel with white housing
• Bright 6-inch red EXIT lettering for maximum visibility
• Elegant architectural design for premium commercial interiors
• Adjustable face rotates from 0° to 90° for wall, ceiling, or sloped installations
• Energy-efficient long-life LED light source
• Replaceable Ni-Cad battery backup included
• Provides up to 90 minutes of emergency illumination during power outages
• Dual-voltage 120/277V input compatibility
• Galvanized steel recessed housing conceals wiring for a clean appearance
• Rounded acrylic panel edges for enhanced aesthetics
• High-charge/ready indicator light with test button
• Isolated surge and short-circuit protection
• Deep-discharge battery protection circuitry
• Includes directional chevrons for flexible exit configurations
• Suitable for offices, hotels, hospitals, schools, museums, galleries, and retail spaces
• UL Listed and compliant with NEC, NFPA, and California Title 20 requirements
• Long-life LED system rated for up to 25 years of operation

Specifications

• Brand: Nora Lighting
• Model: NX-815-LEDRMW
• Product Type: Recessed LED Edge-Lit Exit Sign
• Series: NX-815 LED
• Face Type: Single Face
• Panel Material: Mirrored Acrylic
• Housing Finish: White
• Letter Color: Red
• Letter Height: 6 Inches
• Light Source: LED
• Input Voltage: 120/277V Dual Voltage
• Power Consumption: 3W Normal Operation
• Emergency Operation: Battery Backup
• Battery Type: Replaceable Ni-Cad
• Emergency Runtime: 90 Minutes
• Mounting Type: Recessed Ceiling or Wall Mount
• Face Adjustment: 0° to 90°
• Housing Construction: Galvanized Steel
• Testing Features: Test Button and Charge Indicator
• Protection: Surge, Short-Circuit, and Deep-Discharge Protection
• Listings: UL Listed
• Compliance: NEC, NFPA, California Title 20
• Application: Commercial, Institutional, Hospitality, Healthcare, Retail, and Office Environments
