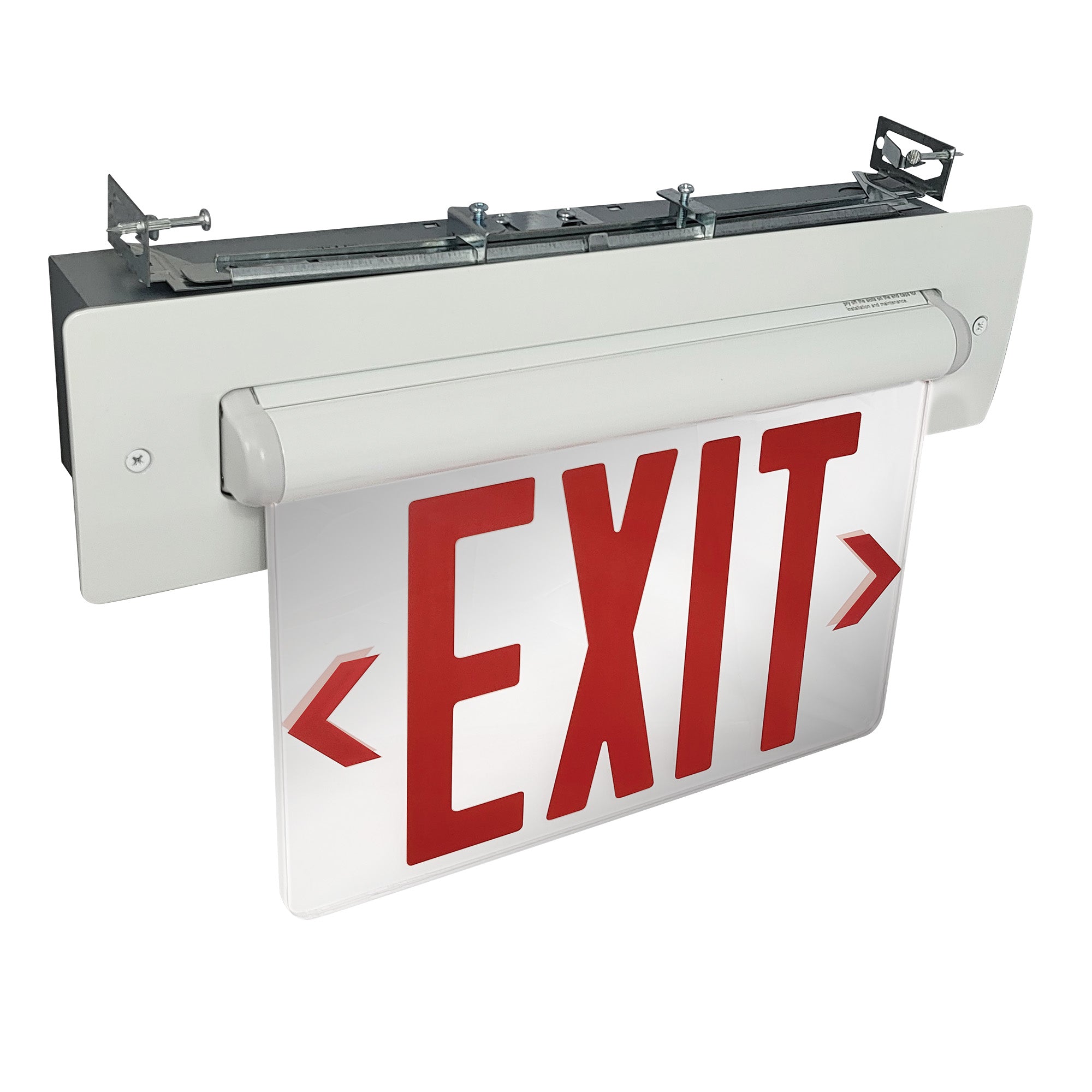

Details of the Nora Lighting NX-815-LEDR2MW Recessed Adjustable LED Edge-Lit Exit Sign, Battery Backup, 6" Red Letters, Double Face, Mirrored Acrylic - White Housing

The Nora Lighting NX-815-LEDR2MW Recessed Adjustable LED Edge-Lit Exit Sign is a premium architectural emergency signage solution designed to provide dependable life-safety performance while maintaining a sleek, modern appearance. Featuring a double-face mirrored acrylic panel, bright 6-inch red EXIT lettering, and a clean white housing, this recessed LED exit sign offers outstanding visibility from multiple directions, making it ideal for commercial buildings, office complexes, hotels, healthcare facilities, schools, museums, and retail environments. The mirrored acrylic panel delivers a sophisticated architectural look that blends seamlessly into contemporary interiors.

Engineered with advanced edge-lit LED technology, the NX-815-LEDR2MW provides brilliant, uniform illumination while consuming minimal energy. The adjustable face can be positioned from 0° to 90°, allowing installation on walls, ceilings, or sloped surfaces to meet a variety of project requirements. Its recessed galvanized steel housing conceals wiring and electrical components, creating a clean, low-profile appearance that complements modern architectural designs.

For reliable emergency operation, this model includes a replaceable Ni-Cad battery backup system that provides a minimum of 90 minutes of illumination during power outages. Dual-voltage 120/277V input compatibility, integrated testing features, and advanced surge and short-circuit protection ensure dependable performance and code compliance. Designed to meet UL, NEC, NFPA, and California Title 20 requirements, the NX-815-LEDR2MW delivers long-lasting reliability for critical emergency egress applications.

Key Features

• Recessed adjustable LED edge-lit exit sign
• Double-face mirrored acrylic panel for multi-directional visibility
• Bright 6-inch red EXIT lettering
• Clean white housing with architectural design
• Adjustable face rotates from 0° to 90° for wall, ceiling, or sloped installations
• Energy-efficient long-life LED illumination
• Replaceable Ni-Cad battery backup included
• Provides 90 minutes of emergency operation during power outages
• Dual-voltage 120/277V input compatibility
• Recessed galvanized steel housing conceals wiring and components
• Mirrored acrylic panel with rounded, finished edges
• High-charge/ready indicator light with test button
• Isolated surge and short-circuit protection
• Deep-discharge battery protection circuitry
• Includes adhesive-mounted directional chevrons
• Ideal for offices, hotels, hospitals, schools, museums, galleries, and retail spaces
• UL Listed and compliant with NEC, NFPA, and California Title 20 standards
• LED and circuitry rated for approximately 25 years of operation

Specifications

• Brand: Nora Lighting
• Model: NX-815-LEDR2MW
• Series: NX-815 LED
• Product Type: Recessed Adjustable LED Edge-Lit Exit Sign
• Operation: Battery Backup
• Face Type: Double Face
• Panel Material: Mirrored Acrylic
• Housing Finish: White
• Letter Color: Red
• Letter Height: 6 Inches
• Light Source: LED
• Input Voltage: 120/277V Dual Voltage
• Power Consumption: 3W Normal Operation / 5W Emergency Operation
• Battery Type: Replaceable Ni-Cad
• Emergency Runtime: 90 Minutes
• Face Adjustment: 0° to 90°
• Mounting Type: Recessed Ceiling or Wall Mount
• Housing Construction: Galvanized Steel
• Testing Features: Test Button and Charge Indicator
• Protection: Surge, Short-Circuit, Brown-Out, and Deep-Discharge Protection
• Listings: UL Listed
• Compliance: NEC, NFPA, State & Municipal Codes, California Title 20
• Warranty: 5-Year Limited Warranty
