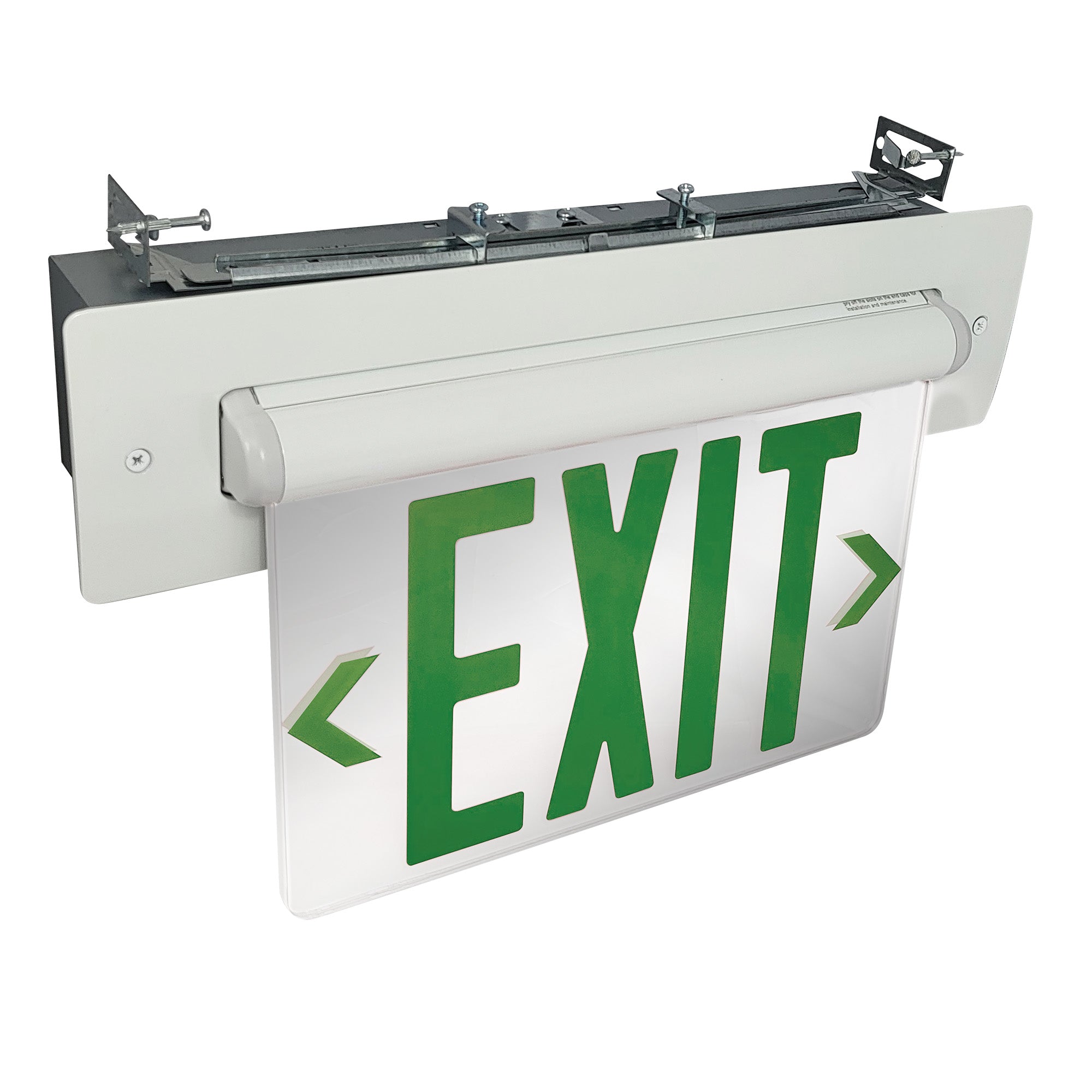

Details of the Nora Lighting NX-815-LEDGMW Recessed Adjustable LED Edge-Lit Exit Sign, Battery Backup, 6" Green Letters, Single Face, Mirrored Acrylic - White Housing

The Nora Lighting NX-815-LEDGMW Recessed Adjustable LED Edge-Lit Exit Sign is a premium architectural emergency signage solution designed to provide reliable egress identification while maintaining a clean, sophisticated appearance. Featuring a single-face mirrored acrylic panel, vibrant 6-inch green EXIT lettering, and a white recessed housing, this fixture blends seamlessly into modern commercial interiors while delivering code-compliant emergency guidance. It is ideal for office buildings, hotels, healthcare facilities, educational institutions, museums, galleries, and upscale retail environments.

Engineered with advanced edge-lit LED technology, the NX-815-LEDGMW creates bright, uniform illumination across the acrylic panel while consuming minimal energy. The mirrored acrylic face features rounded, polished edges for an elegant architectural look, and the adjustable design allows the face panel to be positioned from 0° to 90° for wall, ceiling, or sloped-ceiling installations. The recessed galvanized steel housing conceals wiring and electrical components, creating a sleek, low-profile appearance.

For dependable emergency operation, this model includes a replaceable Ni-Cad battery backup that provides a minimum of 90 minutes of illumination during power outages. Dual-voltage 120/277V input compatibility, integrated test button, charge indicator, and advanced surge and short-circuit protection help ensure reliable long-term performance. Designed to meet UL, NEC, NFPA, and California Title 20 requirements, this exit sign delivers the safety, efficiency, and durability required for professional commercial installations.

Key Features

• Recessed adjustable LED edge-lit exit sign
• Bright 6-inch green EXIT lettering for clear emergency visibility
• Single-face mirrored acrylic panel with premium architectural appearance
• Clean white housing for seamless integration into modern interiors
• Adjustable face rotates from 0° to 90° for wall, ceiling, or sloped-ceiling applications
• Energy-efficient long-life LED illumination
• Replaceable Ni-Cad battery backup included
• Provides a minimum of 90 minutes of emergency operation during power outages
• Dual-voltage 120/277V input compatibility
• Recessed galvanized steel housing conceals wiring and components
• Rounded and polished acrylic panel edges for a refined finish
• High-charge/ready indicator light with integrated test button
• Isolated surge and short-circuit protection
• Deep-discharge battery protection circuitry
• Includes directional chevrons for flexible exit configurations
• Ideal for offices, hotels, hospitals, schools, museums, galleries, and retail facilities
• UL Listed and compliant with NEC, NFPA, and California Title 20 standards
• LED system rated for approximately 25 years of operation

Specifications

• Brand: Nora Lighting
• Model: NX-815-LEDGMW
• Series: NX-815 LED
• Product Type: Recessed Adjustable LED Edge-Lit Exit Sign
• Operation: Battery Backup
• Face Configuration: Single Face
• Panel Material: Mirrored Acrylic
• Housing Finish: White
• Letter Color: Green
• Letter Height: 6 Inches
• Light Source: Long-Life LED
• Input Voltage: 120/277V Dual Voltage
• Power Consumption: 3.8W Normal Operation / 0.7W Emergency Operation
• Battery Type: Replaceable Ni-Cad
• Emergency Runtime: 90 Minutes
• Face Adjustment: 0° to 90°
• Mounting Type: Recessed Ceiling or Wall Mount
• Housing Construction: Galvanized Steel
• Testing Features: Test Button and Charge Indicator
• Protection: Surge, Short-Circuit, Brown-Out, and Deep-Discharge Protection
• Listings: UL Listed
• Compliance: NEC, NFPA, State & Municipal Codes, California Title 20
• Warranty: 5-Year Limited Warranty
