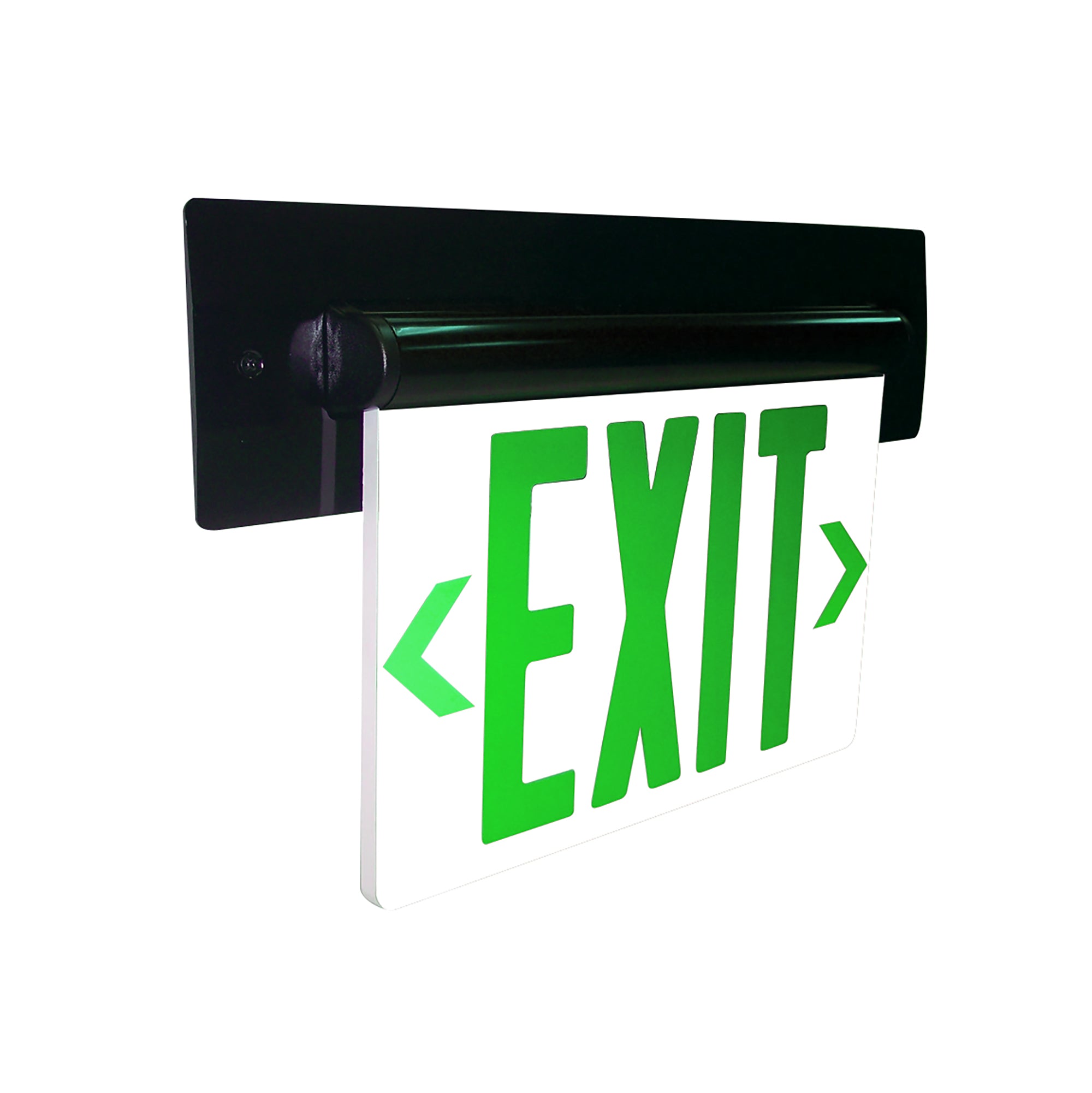

Details of the Nora Lighting NX-815-LEDGMB Recessed Adjustable LED Edge-Lit Exit Sign, Battery Backup, 6" Green Letters, Single Face / Mirrored Acrylic, Black Housing

Ideal for architectural applications where aesthetic and minimal profile appearance is desired. LED sources within the adjustable housing cast a brilliant red or green illumination on letters embedded inside the acrylic face.

BODY
12³ Width X 8-1/4³ Height X 4³ Depth
Extruded aluminum housing, acrylic panel, and die-cast cover plate

HOUSING
Galvanized steel construction

FACE
Single or double face. Acrylic face has rounded and finished edge for attractive appearance. Red or green 6³ lettering inside face. Stick-on chevrons included.

MOUNTING
24-1/2³ Bar Hangers included

ELECTRICAL
Voltage: 120V or 277V dual input
Power Consumption: 3 watts normal / 5 watts emergency operation
Light Source: Long life LED sources
Testing: High-charge/ready operation indicator light with test button
Circuitry Protection: Short circuit and brown-out protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination

BATTERY
Replaceable 90-minute Ni-Cad battery included

LABELS AND LISTINGS
UL Listed
NEC
NFPA
State & Municipal
Certified to the energy efficiency standards of California Title 20

Specification

• Brand: Nora Lighting
• SKU: NX-815-LEDGMB
• UPC: 732180486953
• Product Line: 5010
